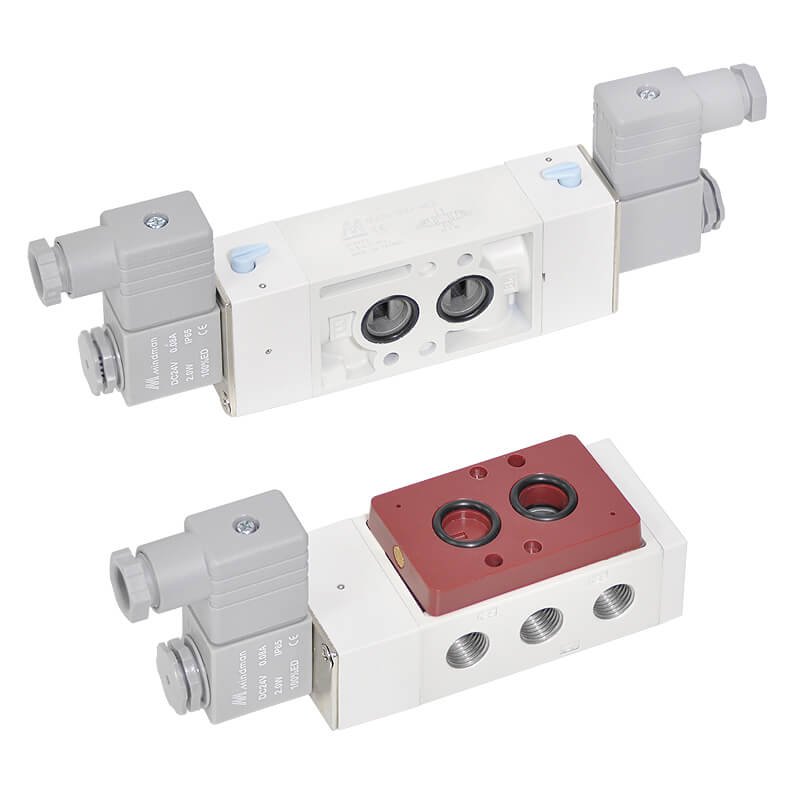

Niscon MVSN-300 Series: NAMUR Solenoid Valve – MVSN-300-4E2-DC24-E

NAMUR Solenoid Valve, Body Width: 4 Way(5-Port), Coil Type: Double Solenoid, Number of Positions: 2 Position, Port Diameter: G1/4, Number of Ports: 5-Port, Operating Fluid: Air, Withstand Pressure: 1MPa, Response Time: 50ms, Ambient Temperature: -5~+50℃(Non-Freezing), Voltage Tolerance Range: ±10%, Insulation Class: F Grade, Effective Cross-Sectional Area: 35mm2, Operating Pressure Range: 0.2~0.8MPa, Rated Voltage: DC24V, Terminal Type: Explosion-Proof Type(Black Coil), Weight: 507g
