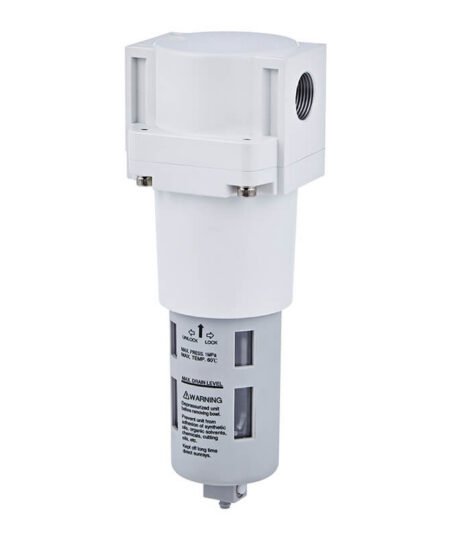

Niscon MAF501 Series: Air Combination Unit(Filter) - MAF501-25A-MD-B

Niscon MAF501 Series: Air Combination Unit(Filter) – MAF501-25A-MD-B

$180.50

Air Combination Unit(Filter), Port Diameter: Rc1, Bowl Material: Metal Bowl, Drain Valve: Auto Drain Valve(FMRF300), Flow Direction: Left¡úRight, Bracket: L Type Bracket, Port Thread: Rc Thread, Operating Fluid: Air, Ambient Temperature: -5~+60℃(Non-Freezing), Filtration Rating: 40¦μm, Operating Pressure Range: 0.05~1.5MPa, Withstand Pressure: 2MPa, Condensate Storage Capacity: 70cm3, Weight: 1300g

Availability: 10000 in stock

SKU: MAF501-25A-MD-B Category: Tag: Brand:

Features
● Port Diameter Code 20A, 25A
● Port Diameter Size 3/4, 1
● Operating Fluid Air
●Operating pressure range (Note) PC/nylon bowl: 0.05~1 MPa
● Metal Bowl: 0.05~1.5 MPa
●Withstand pressure PC/nylon bowl: 1.5 MPa
● Metal Bowl: 2 MPa
● Ambient Temperature £­5~£«60℃ (Non-Freezing)
● Filtration Rating 40¦μm

Weight 1 kg
