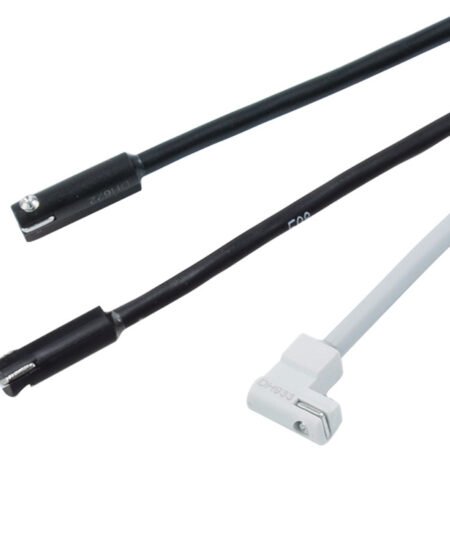

Mindman RDFE Series: Sensor(Solid-State NPN) – RNFE-2M
SKU: RNFE-2M
$22.00
Sensor, Solid-State NPN, Wiring Method: 3-Wire, Wiring Type: Water Flat Wiring, Wire Length: L=2000mm
10000 in stock
Features
● Wiring Method 2-Wire, 3-Wire
● Switch Logic Electronic Solid-State, N.O. Type
● Contact Type Solid-State, Solid-State NPN, Solid-State PNP
● Operating Voltage Range 5~30V DC
● Max Switching Current 50mA, 80mA (max.)
● Contact Capacity 1.5W, 2.2W (max.) (¡ù1)
● Current Consumption 10mA, 6mA @24V DC (max.)
● Internal Voltage Drop 3.5V, 0.5V @ 50mA (max.)
Specification
| Item | Specification |
|---|---|
| Wiring method | 2 wire, 3 wire |
| Switching logic | Solid state output, Normally open |
| Switch type | Non-contact, NPN current sinking, PNP current sourcing |
| Contact rating | 1.5W, 2.2W (max.) (※1) |
| Operating voltage | 5~30V DC |
| Switching current | 50mA, 80mA (max.) |
| Current consumption | 10mA, 6mA @24V DC (max.) |
| Voltage drop | 3.5V, 0.5V @ 50mA (max.) |
| Leakage current | 0.1mA(40uA), 0.01mA (max.) |
| Indicator | Red LED |
| Cable | 2.6φ, 2C, PVC, 2.6φ, 3C, PVC |
| Operating Frequency | 1000 Hz |
| Temperature range | −10~+70°C (No freezing) |
| Shock | 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 3,4 (※4) |
| Weight | 12.8 g (1m cable) / 23.8 g (2m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) /X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
