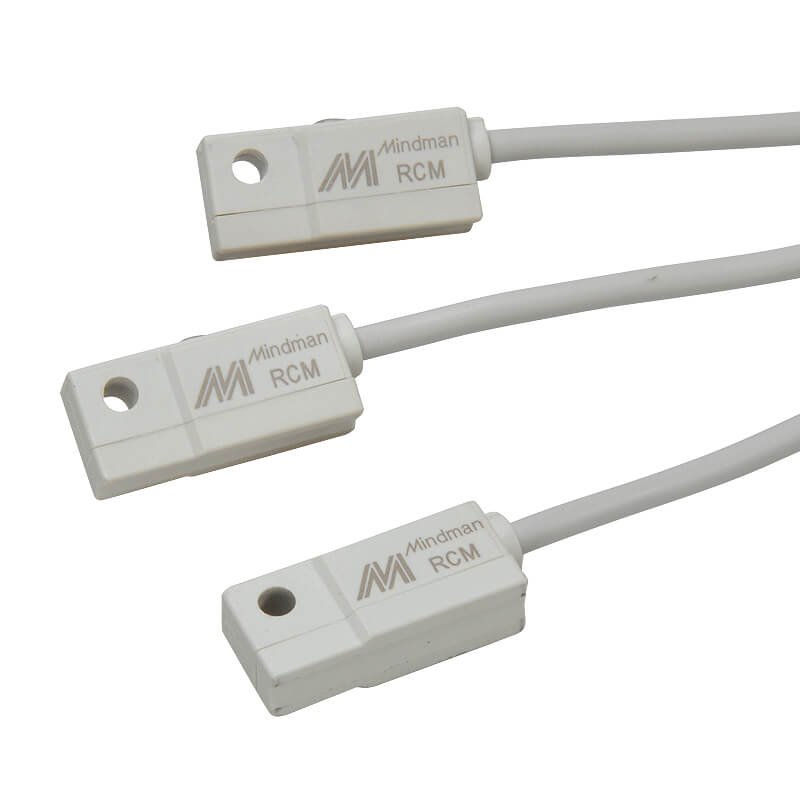

Mindman RCM Series: Sensor – RNM-EQD
$22.00
Sensor, Model: Solid-State NPN, Wire Length: M8 3 Pin Termin al Type(European Termin al)
10000 in stock
Features
● Wiring Method 2-Wire, 3-Wire
● Switch Logic SPST N.O. Type, Electronic Solid-State,N.O. Type
● Contact Type Reed, Solid-State, Solid-State NPN, Solid-State PNP
● Operating Voltage Range 5~240V DC/AC (5~120V DC/AC), 10~30V DC, 5~28V DC, 5~30V DC
● Max Switching Current 100mA, 50mA, 200mA (max.)
● Contact Capacity 10W, 1.5W, 6W (max.) (¡ù1)
● Current Consumption 10mA@24V DC, 6mA@24V DC (max.)
● Internal Voltage Drop 3.5V, 3.7V, 1.5V, 0.5V (max.)
| Item | Specification |
|---|---|
| Wiring method | 2 wire, 3 wire |
| Switching logic | SPST normally open, Solid state output, normally open |
| Switch type | Reed switch, Without contact, NPN current sinking, PNP current sourcing |
| Operating voltage | 5~240V DC/AC (5~120V DC/AC), 10~30V DC, 5~30V DC, 5~28V DC |
| Switching current | 100mA, 50mA, 200mA (max.) |
| Switching rating | 10W, 1.5W, 6W (max.) (※1) |
| Current consumption | 10mA@24V DC, 6mA@24V DC (max.) |
| Voltage drop | 3.5V, 3.7V, 1.5V, 0.5V (max.) |
| Leakage current | 0.1mA, 0.01mA (max.) |
| Indicator | Red LED, Green LED |
| Cable | φ3.3,2C, PVC, φ3.3,3C, PVC |
| Temperature range | −10~+70°C (No freezing) |
| Shock | 30G, 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 1, 3,4 (※4) |
| Weight | 33 g (2m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
