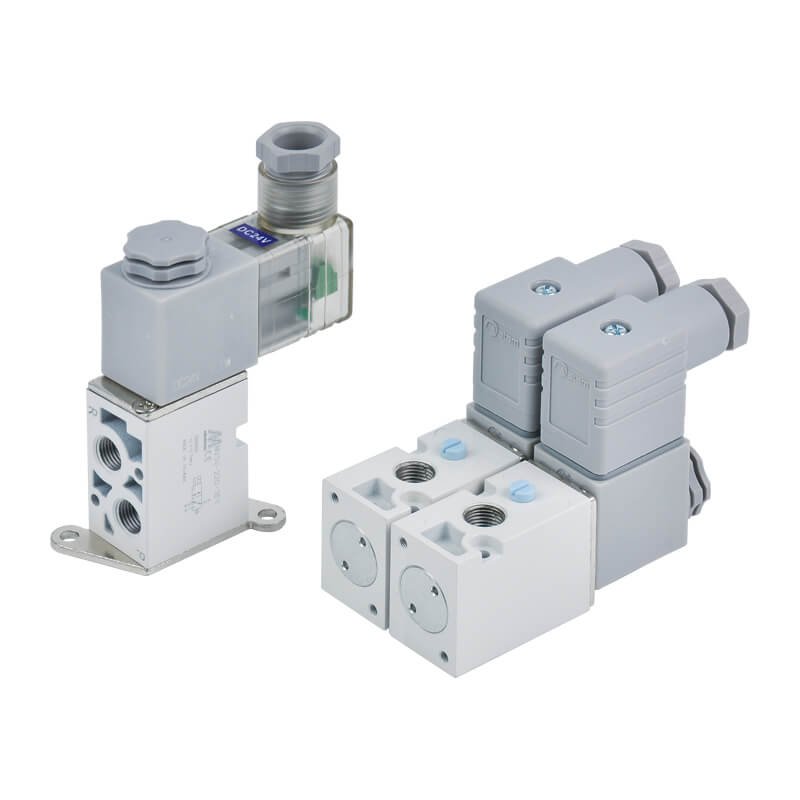

Mindman MVSV-220 Series: Solenoid Valve(Direct-Acting) – MVSV-220-3E1-B-DC24V-G

Name: Mindman MVSV-220 Series: Solenoid Valve(Direct-Acting) - MVSV-220-3E1-B-DC24V-G - Mindman
SKU: MVSV-220-3E1-B-DC24V-G
Price: 49.00 USD
Availability: InStock

SKU: MVSV-220-3E1-B-DC24V-G

$49.00

Solenoid Valve(Direct-Acting), Series: MVSV-220, Number of Ports: 3-Port(3/2), Bracket: Mounting Bracket, Terminal Type: DIN Termin al Type, Voltage Type: DC24V, Port Thread: G Thread

10000 in stock

Click to view the Mindman MVSV-220 catalog.

Features
● Port Diameter Size: 1/8,
●Fluid: air, low vacuum,
● Operating Pressure Range: -100kPa ~ 0.7 MPa,
●Response time: 20 ms, rated voltage: DC24V

Specification

Item	Specification
Bore No.	6A
Port size	1/8
No. of port	3
No. of position	2
Medium	Air, low vacuum
Operating perssure range	−101kPa ~ 0.7 MPa
Proof pressure	1 MPa (low vacuum: −101 kPa)
Effective orifice	P→A: 5.2 mm2, R→A: 6.0 mm2 A→P: 6.2 mm2, A→R: 5.8 mm2
Reponse time	20 ms
Ambient temperature	–5~+50°C (No freezing)
Voltage	DC24V
Power consumption	Standard: 7W Power saving: Start:7W (※1) Power saving:3W
Available voltage range (※2)	±10%
Insulation class	F class
Weight	164g (with bracket: 181)
Remark	※1. Power saving covert time 350ms. ※2. Energy saving DC24V: −5%~+10%.

Order Example

MVSV-220 Order Example

Mindman MVSV-220 Series: Solenoid Valve(Direct-Acting) – MVSV-220-3E1-B-DC24V-G
