Mindman MVSC1-220 Series: Lead Wire – MVDY-100-WDJ

Name: Mindman MVSC1-220 Series: Lead Wire - MVDY-100-WDJ - Mindman
SKU: MVDY-100-WDJ
Price: 32.00 USD
Availability: InStock

SKU: MVDY-100-WDJ

$32.00

Lead Wire, Applicable: MVSC1-220 Series Solenoid Valve(&MVDY Comm on,Only H Water Flat Socket With LED Type), Voltage Type: DC24V/12V/6V, Socket Type: JPC Type Type, Lead Wire Length: 500mm

10000 in stock

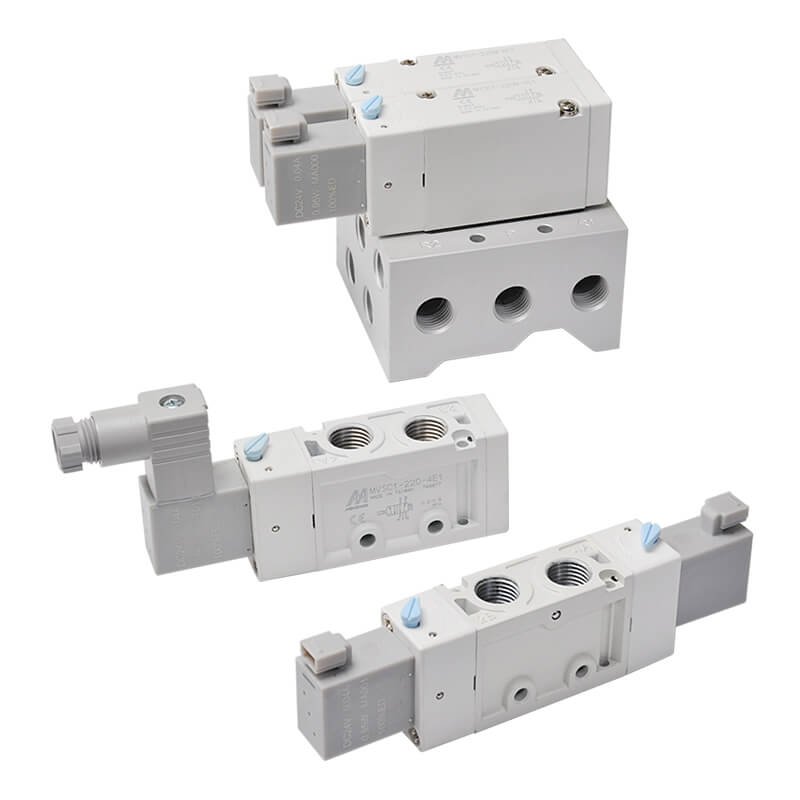

Click to view the Mindman MVSC1-220 catalog.

Features
●DISK ring and U-packing ring (HNBR) design:
Excellent wear resistance and sealing, wide temperature range -35~+150°C (life up to 50 million cycles).
●Bridge-rectifier design:
Converts AC to DC, so there is no noise when powered by AC.
●Low power consumption:
Power 0.95W (DC), saving about 70% versus other brands’ 3W.
●Low current consumption:
Extends the life of upstream drivers (PLC, relay, etc.).
●Upstream low-power-output PLC:
Can drive the solenoid valve directly.

Specification

Item	Specification
Body width	22 mm
Bore No.	6A, 8A
Port size	1/8, 1/4
No. of port	5
No. of position	2, 3
Medium	Air
Operating pressure range	0.2~0.8 MPa, 0.3~0.8 MPa (5/3)
Proof pressure	1 MPa
Flow	871 l/min, 980 l/min (5/3)
Effective orifice	18mm2, 16 mm2 (5/3)
Response time	Standard: AC < 40ms, DC < 30ms, AC<50ms, DC<40ms Quick response: AC < 37ms, DC < 26ms
Ambient temperature	−5~+50°C (No freezing)
Voltage	AC110V, AC220V (50/60)Hz, DC6/12/24V
Power consumption	AC=1.12VA , DC=0.95W
Available voltage range	±10%
Insulation class	F class
Weight	86g, 130g, 108g, 152g, 198g

Order Example

MVSC1-220 Order Example

Mindman MVSC1-220 Series: Lead Wire – MVDY-100-WDJ
