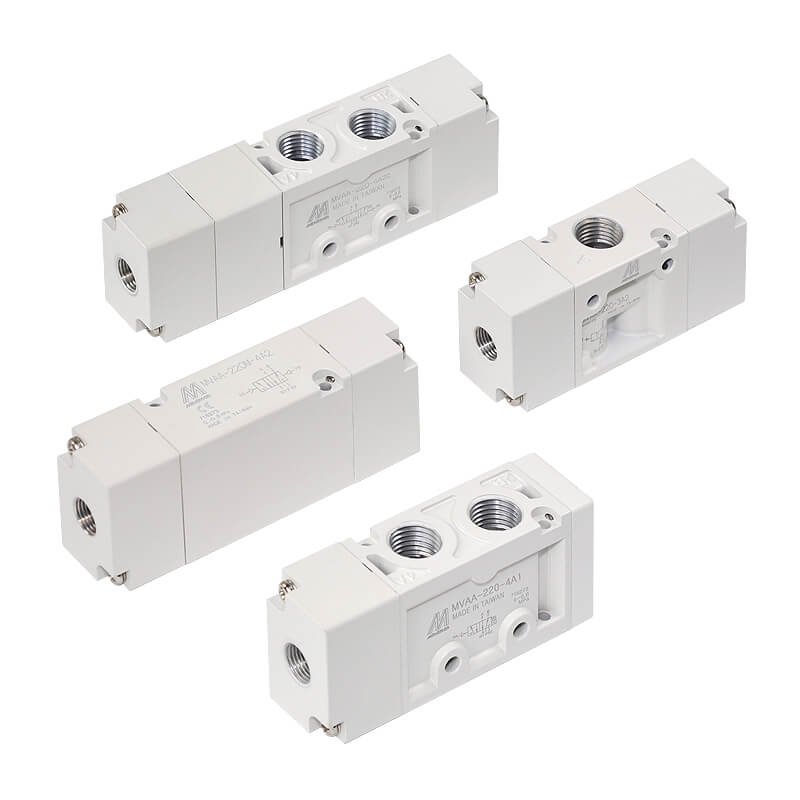

Mindman MVAA-220 Series: Air-Operated Valve – MVAA-220-4A2P-NPT

Name: Mindman MVAA-220 Series: Air-Operated Valve - MVAA-220-4A2P-NPT - Mindman
SKU: MVAA-220-4A2P-NPT
Price: 38.00 USD
Availability: InStock

SKU: MVAA-220-4A2P-NPT

$38.00

Air-Operated Valve, Port Diameter Code: 8A, Port Diameter Size: 1/4, Number of Ports: 4-Port, Body Type: Straight-Piping Type, Direction: 4 Way(5-Port), Actuation Method: Double-Acting Air-Pilot, Center Position Type: Center Pressurized, Port Thread: NPT Thread

10000 in stock

Click to view the Mindman MVAA-220 catalog.

Features
● Port Diameter Code 8A
● Port Diameter Size 1/4
● Number of Ports 3-Port,5-Port
● Operating Fluid Air
● Operating Pressure Range 0~0.8 MPa

Specification

Item	Specification
Bore No.	8A
Port size	1/4
No. of port	3, 5
Medium	Air
Operating pressure range	0~0.8 MPa
Proof pressure	1 MPa
Effective orifice	18 mm²
Pilot pressure range	(0.3×P※ + 0.1)~0.8 MPa
Ambient temperature	−5~+60°C (No freezing)
Weight	106g~179g
Remark	※ P: operating pressure.

Order Example

MVAA-220 Order Example
