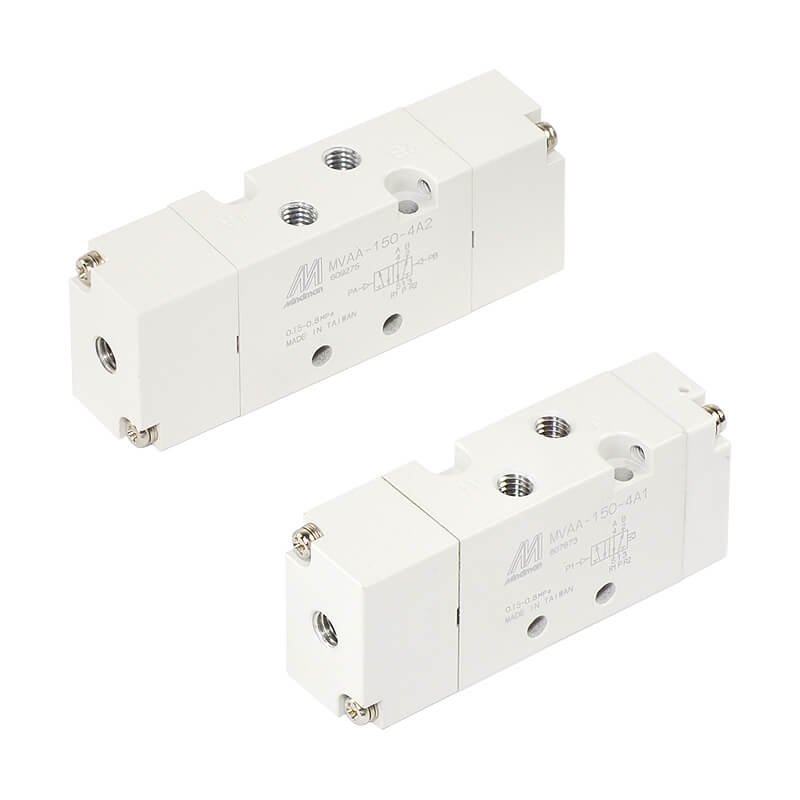

Mindman MVAA-150 Series: Air-Operated Valve – MVAA-150-4A2
SKU: MVAA-150-4A2
$38.00
Air-Operated Valve, Port Diameter Code: M5, Port Diameter Size: M5¡Á0.8, Number of Ports: 5-Port, 4 Way(5-Port), Actuation Method: Double-Acting Air-Pilot
10000 in stock
Features
● Port Diameter Code M5
● Port Diameter Size M5¡Á0.8
● Number of Ports 5-Port
● Operating Fluid Air
● Operating Pressure Range 4A1: 0.15~0.8 MPa, 4A2: 0~0.8 MPa
Specification
| Item | Specification |
|---|---|
| Bore No. | M5 |
| Port size | M5×0.8 |
| No. of port | 5 |
| Medium | Air |
| Operating pressure range | 4A1: 0.15~0.8 MPa, 4A2: 0~0.8 MPa |
| Proof pressure | 1 MPa |
| Effective orifice | 3.8 mm² |
| Pilot pressure range | (0.45×P + 0.1)~0.8 MPa (P: operating pressure) |
| Ambient temperature | −5~+60°C (No freezing) |
| Weight | 47g~58g |
