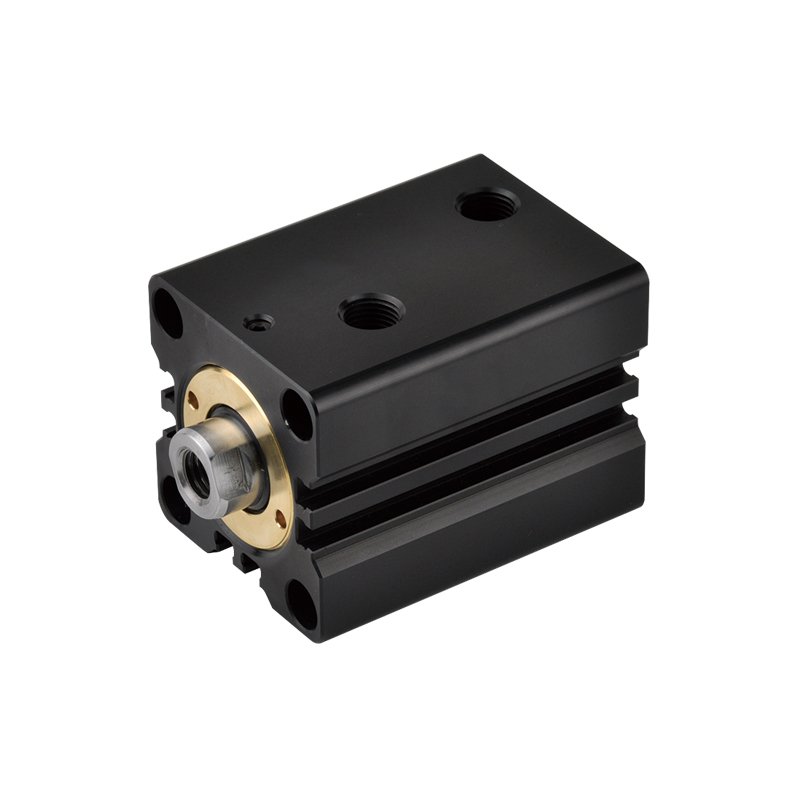

Mindman MHCB-M Series: Sensor-Type Compact Hydraulic Cylinder(Axial-Mount Type) – MHCB-40M-15
$123.00
Sensor-Type Compact Hydraulic Cylinder(Axial-Mount Type), Cylinder Bore: 40mm, Standard Stroke: 15mm, Shaft End Type: Female-Thread Type
10000 in stock
Features
● The compact hydraulic cylinder saves more space than ordinary ones, ideal for small machines or space-
where space is limited.
● The cylinder’s inner wall is specially machined smoother to extend service life.
● Lightweight, attractive, and sturdy design.
● The whole series is magnet-equipped.
| Item | Specification |
|---|---|
| Tube I.D. (mm) | 32, 40, 50, 63, 80 |
| The range of stroke (mm) | 10~50 |
| Medium | Filtered oil |
| Max. operating pressure | 7 MPa |
| Material | Anodised aluminum alloy |
| Ambient temperature | −10~+60°C (No freezing) |
| Sensor switch | LN32H |
