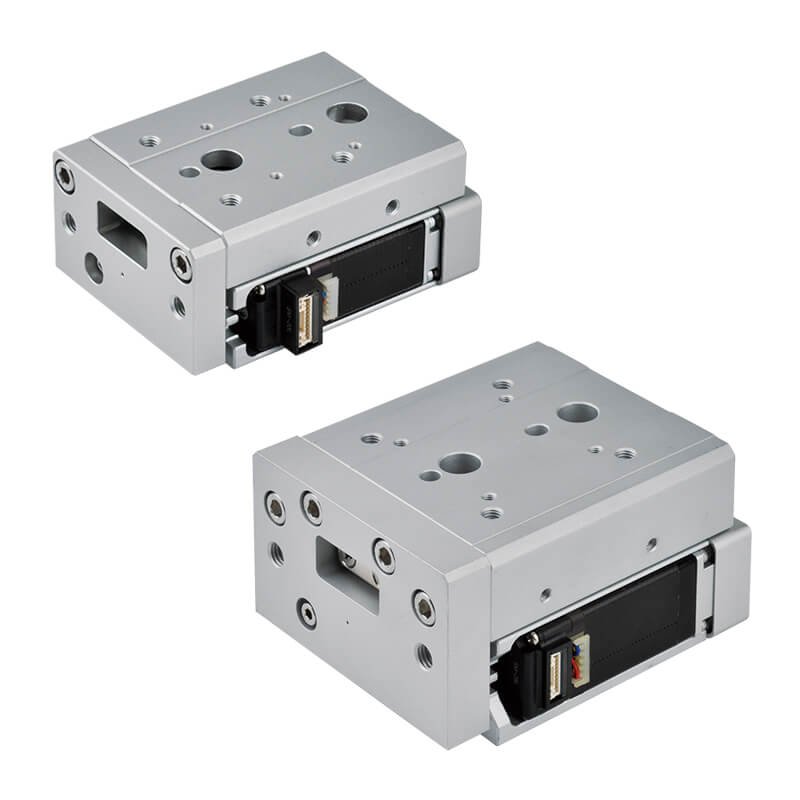

Mindman MESS2 Series: Accessory Kit – AK-ES1-16-30

Name: Mindman MESS2 Series: Accessory Kit - AK-ES1-16-30 - Mindman
SKU: AK-ES1-16-30
Price: 380.00 USD
Availability: InStock

SKU: AK-ES1-16-30

$380.00

Accessory Kit, Applicable MESS2 Spec16, Stroke30mm, With¹âÕÚÆ¬, Fixed Base, Bolt, Nut

10000 in stock

Click to view the Mindman MESS2 catalog.

Features
● Spec 16, 25
●Position Repeatability ±0.02 mm
●Screw Lead 16: 2 mm
●25: 2, 8 mm
●Max Speed *1 Motor SM/BM: ¡Ü50~¡Ü400 mm/s
● Motor OBM: ¡Ü50~¡Ü200 mm/s
●Load *2 Horizontal: 3 kg (16), 1.5, 6 kg (20)
●Vertical: 0.8 kg (16), 0.8, 1.8 kg (20)
●Thrust *1, 3, 4 18~195 N

Specification

Item	Specification
Size	16, 25
Position repeatability	±0.02 mm
Lead	16: 2 mm 25: 2, 8 mm
Maximum speed (*1)	Motor SM/BM: ≤50~≤400 mm/s Motor OBM: ≤50~≤200 mm/s
Work load (*2)	Horizontal: 3 kg (16); 1.5, 6 kg (20) Vertical: 0.8 kg (16); 0.8, 1.8 kg (20)
Pushing force (*1,3,4)	18~195 N
Max. stroke length	16: 100 mm 25: 100 mm
Encoder	Incremental A/B/Z (4000PPR)
Motor size	16: 20 mm (SM, OBM, BM) 25: 25 mm (OBM, BM), 28 mm (SM)
Rated voltage	DC 24V ±10%
Sensor switch	RLT
Remark	1. The speed and force may change depending on the cable length, load, stroke and mounting conditions. 2. The maximum load capacity decreases as the speed increases. 3. Mounting position of the rated load: for horizontal use – on the table; for vertical use – at the connecting plate. 4. Calculation for static and dynamic loads and moments can be found in pages 3~4 of the MCSS catalog. 5. The accuracy of pushing force is ±20%. 6. Pushing force for MESF2 is from 30% to 90%.

Order Example

MESS2 Order Example

Mindman MESS2 Series: Accessory Kit – AK-ES1-16-30
