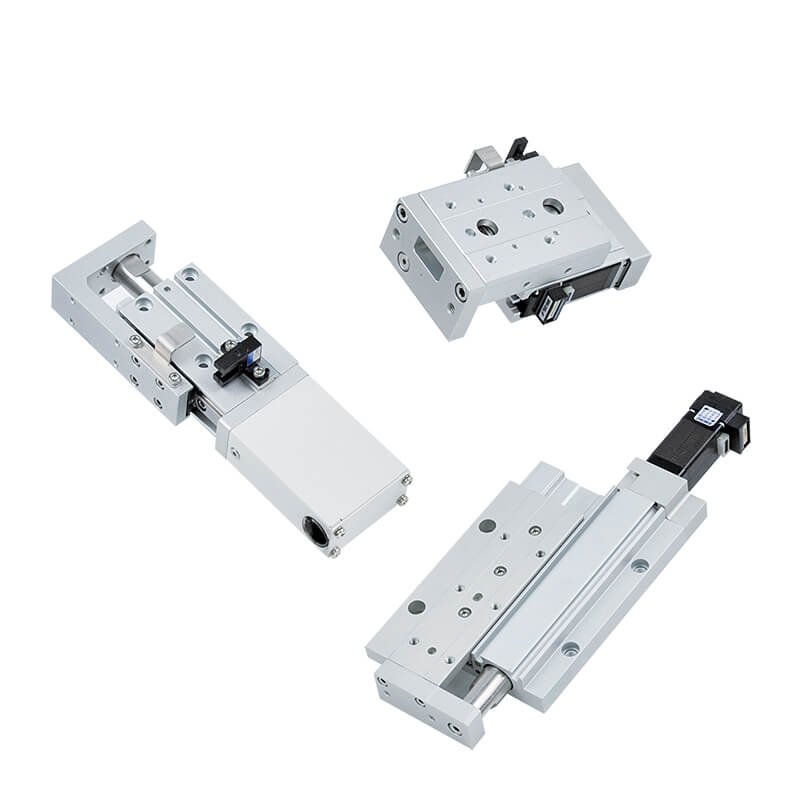

Mindman MESF2 Series: Accessory Kit – AK-ES2-100

Name: Mindman MESF2 Series: Accessory Kit - AK-ES2-100 - Mindman
SKU: AK-ES2-100
Price: 380.00 USD
Availability: InStock

SKU: AK-ES2-100

$380.00

Accessory Kit, Applicable MESF2 Series, Stroke: 100mm, Inner With Fixed Base¡Á1, Bolt¡Á2

10000 in stock

Click to view the Mindman MESF2 catalog.

Features
Spec 16, 20
Position Repeatability ±0.02 mm
Screw Lead 16: 2 mm
20: 2, 8 mm
Max Speed *1 Motor SM/BM: ¡Ü50~¡Ü400 mm/s
Motor OBM: ¡Ü50~¡Ü200 mm/s
Load *2
Horizontal: 3 kg (16), 1.5, 6 kg (20)
Vertical: 0.8 kg (16), 0.8, 1.8 kg (20)
Thrust *1, 3, 4 18~195 N

Specification

Item	Specification
Size	16, 20
Position repeatability	±0.02 mm
Lead	16: 2 mm 20: 2, 8 mm
Maximum speed (*1)	Motor SM/BM: ≤50~≤400 mm/s Motor OBM: ≤50~≤200 mm/s
Work load (*2)	Horizontal: 3 kg (16); 1.5, 6 kg (20) Vertical: 0.8 kg (16); 0.8, 1.8 kg (20)
Pushing force (*1,3,4)	18~195 N
Stroke	16: 30, 50, 75 mm 20: 30, 50, 75, 100 mm
Encoder	Incremental A/B/Z (4000PPR)
Motor size	16: □20 mm 20: □25 mm
Rated voltage	DC 24V ±10%
Sensor switch	RDC(V), RQC(V)
Remark	1. The speed and force may change depending on the cable length, load, stroke and mounting conditions. 2. The maximum load capacity decreases as the speed increases. 3. The accuracy of pushing force is ±20%. 4. Pushing force for MESF2 is from 30% to 90%.

Order Example

MESF2 Order Example

Mindman MESF2 Series: Accessory Kit – AK-ES2-100
