Features
● Hexagonal shaft, non-rotating
● Compact and lightweight
● Oiled before shipment
● Good repeatability
● Standard With Magnet

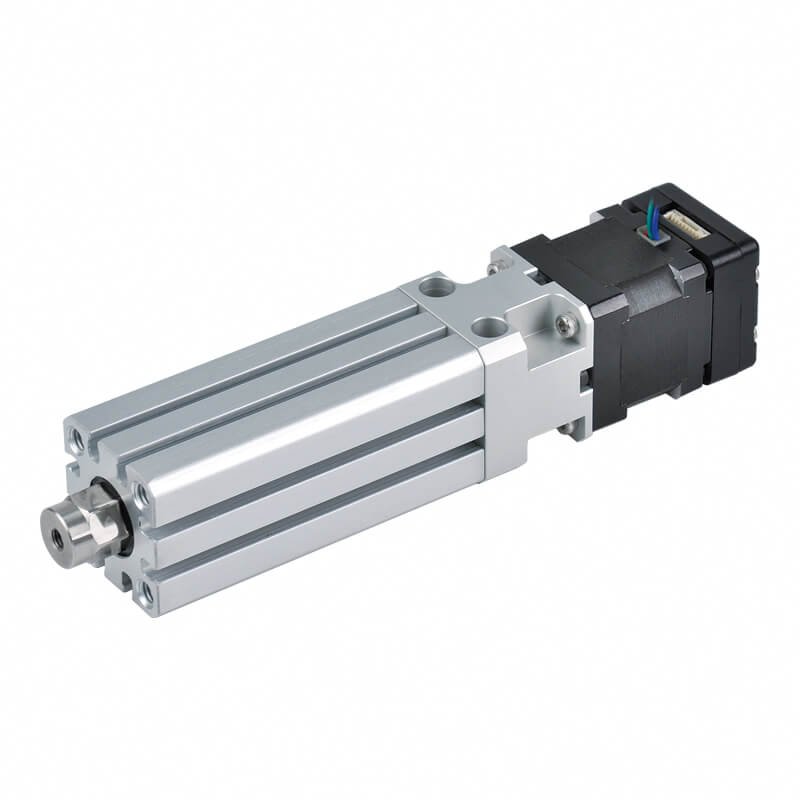

Mindman MEJQ Series: Compact Electric Cylinder(With Motor) – MEJQ-16L01-50-BA-CM1001N03
Mindman MEJQ Series: Compact Electric Cylinder(With Motor) – MEJQ-16L01-50-BA-CM1001N03
$585.00
Compact Electric Cylinder(With Motor), Spec: 16(Screw Diameter?4), Screw Lead: 1mm, Stroke: 50mm, Motor Position: Rotary Fold, Wiring Direction: Upper(¢Ù), Controller: CM10(Matching OBM Stepper Motor), Motor + Encoder Cable Length: 1m, Contact Method: NPN, I/O Cable Length: 3m
Availability: 10000 in stock
Shipping, returns & order help
Shipping & production times
Free shipping on orders of US$100 or more.
In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 2–6 weeks of factory production before shipping, depending on the product.
Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.
Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.
Model selection & custom orders
Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email us at mindman@mindmans.com with the model number and required specifications.
Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.
Tracking & delivery support
Track your order on our order-tracking page using the tracking number from your shipping confirmation email.
Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.
If delivery fails, contact the local carrier and email us at mindman@mindmans.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.
Returns & product issues
Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Email us at mindman@mindmans.com for a Return Authorization (RA) number before returning anything.
Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.
Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.
Specification
| Item | Specification |
|---|---|
| Size | 16, 20 |
| Positioning repeatability | ±0.02 mm |
| Lead | 1, 2 mm |
| Ball screw | ø4, ø6 |
| Stroke | 30 / 50 / 75 / 100 mm |
| Anti-rotation tolerance | ±0.7° |
| Sensor switch | RDC(V), RQC(V) |
| With step motor | □25, □28, □35 |
| Max. speed | ≤42 ~ ≤100 mm/s |
| Rated axial load (*2,3) | Size 16: 0.7 kg Size 20: 0.95 kg |
| Max. thrust (*4) | 206 ~ 1196 N |
| Remark | *1. Do not apply radial loads or loads in directions other than the intended movement direction to the shaft. *2. The rated load capacity varies depending on the moving speed. Please refer to the Speed-Load Graph. *3. The rated axial horizontal load refers to a value when the shaft is free from radial and moment loads and is supported externally by a linear guide. *4. Thrust and operating speed are subject to variation depending on cable length, load, stroke, and mounting conditions. The thrust tolerance is ±20%. All specified values are based on 250 rpm motor operation. |
Order Example
