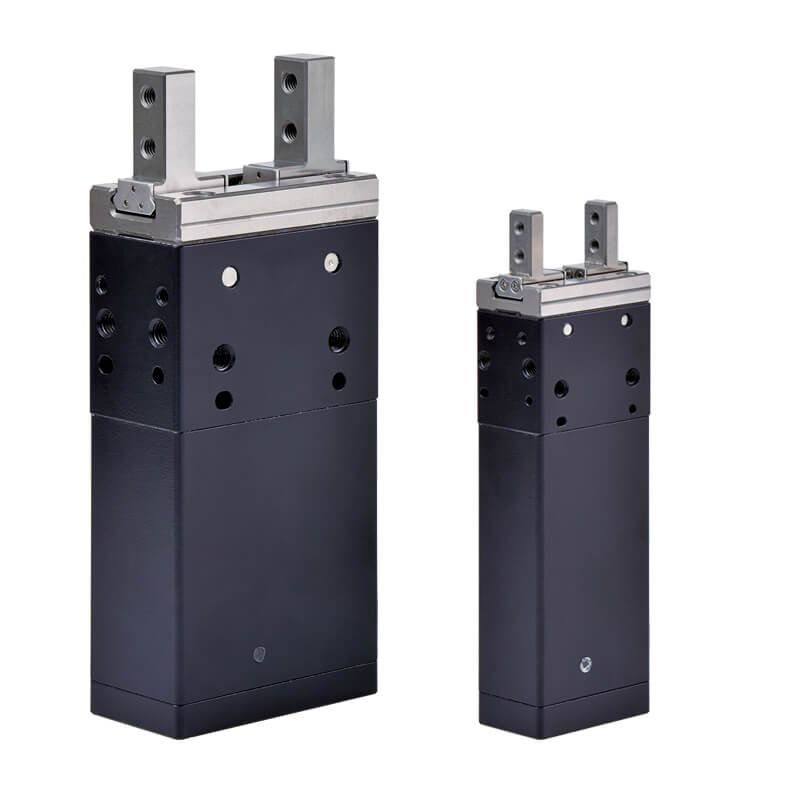

Mindman MEHC3 Series: Electric Gripper-Three-Stage Clamping Force(With Motor,Built-In Controller)(Spec16) – MEHC3-16-3-015
$2,389.00
Electric Gripper-Three-Stage Clamping Force(With Motor,Built-In Controller), Spec: 16, Gripper Type: Flat Flat Type, I/O + Power Cable Length: 1.5m(Standard), Built-In Controller, Input: 3 Point(PNP+NPN), Output: 1 Point(NPN)
10000 in stock
Features
● Self-locking mechanism prevents loosening for secure clamping.
● Fits 7 gripper types for diverse needs.
● Mounting holes on 5 faces adapt flexibly to various scenarios.
● Built-in motor and controller; integrated design saves space.
● Controlled via I/O signals for simple, quick operation.
● Three-stage adjustable clamping force adapts flexibly to different workpieces.
| Item | Specification |
|---|---|
| Size | 16, 25 |
| Total jaw stroke | 6, 14 |
| Gripping force (※1) | Level 1: 12, 25 N Level 2: 17, 33 N Level 3: 22, 41 N |
| Opening / Closing time | 0.5 sec |
| Transmission | Lead screw |
| Guide type | Non-recirculating linear bearings |
| Repeatability (※2) | ±0.02 mm |
| Operating temperature | 5~40°C |
| Operating humidity | <85%RH (Non-condensing, no dew formation) |
| Control method | I/O, Built-in controller |
| I/O interface | Input: 3 points (PNP), 3 points (NPN) Output: 1 point (NPN), 1 point (NPN) |
| Rated voltage | DC24V ±10% |
| Power consumption (※3) | Standby: 1W Level 1: 3W Level 2: 6, 5W Level 3: 9, 7W |
| Weight | 16: 0.3 kg, 25: 0.8 kg |
| Remark | ※1: Gripping force tolerance ±20%. ※2: The offset value of the gripped item under the same gripping parameters. ※3: The power consumption indicated for each gripping force level represents the instantaneous maximum power consumption. |
