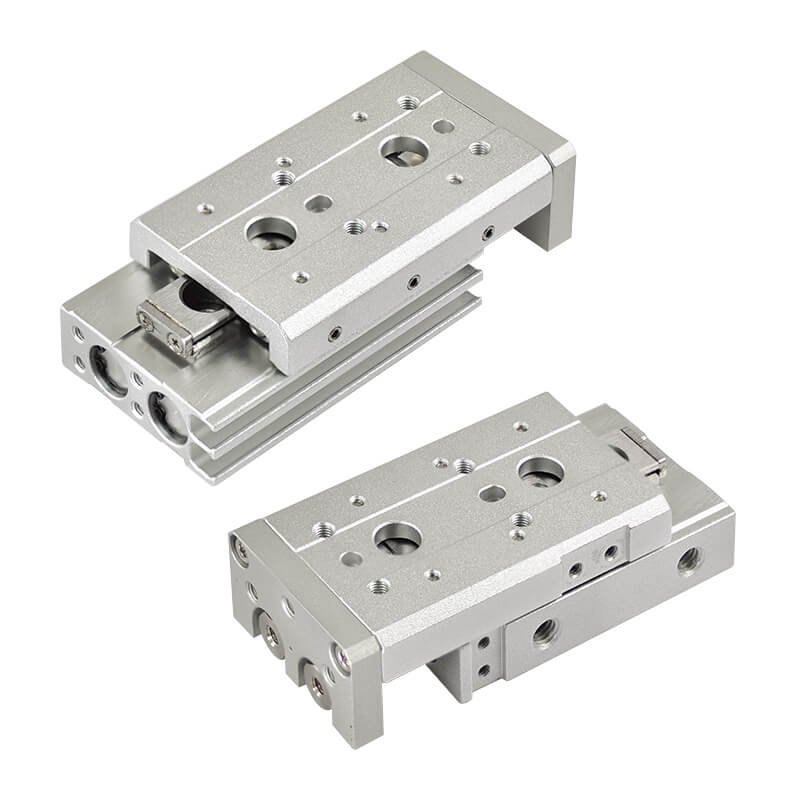

Mindman MCSQ Series: Slide Pneumatic Cylinder – MCSQ-6L-50-AT

Name: Mindman MCSQ Series: Slide Pneumatic Cylinder - MCSQ-6L-50-AT - Mindman
SKU: MCSQ-6L-50-AT
Price: 193.00 USD
Availability: InStock

SKU: MCSQ-6L-50-AT

$193.00

Slide Pneumatic Cylinder, Cylinder Bore: ø6, Type: Symm etric Type, Stroke: 50mm, Regulator: Retract End Regulator, Adjustment Range: 5mm

10000 in stock

Click to view the Mindman MCSQ catalog.

Features
● Compactly integrates the work platform and cylinder for precision assembly.
● Embedded-sensor body design.
● Magnet fitted across the whole series.

Specification

Item	Specification
Acting type	Double acting
Tube I.D. (mm)	6, 8
Port size	M5×0.8
Medium	Air
Operating pressure range	0.15~0.7 MPa
Proof pressure	1 MPa
Ambient temperature	−5~+60°C (No freezing)
Available speed range	50~500 mm/sec
Lubricator	Not required
Cushion	Rubber bumpper (Standard) ; Shock absorber (Option)
Sensor switch	RCE, RCE1, RDEP

Order Example

MCSQ Order Example

Mindman MCSQ Series: Slide Pneumatic Cylinder – MCSQ-6L-50-AT
