Mindman MCRQ-S Series: Rotary Pneumatic Cylinder – MCRQ-S-25-1

Name: Mindman MCRQ-S Series: Rotary Pneumatic Cylinder - MCRQ-S-25-1 - Mindman
SKU: MCRQ-S-25-1
Price: 164.00 USD
Availability: InStock

SKU: MCRQ-S-25-1

$164.00

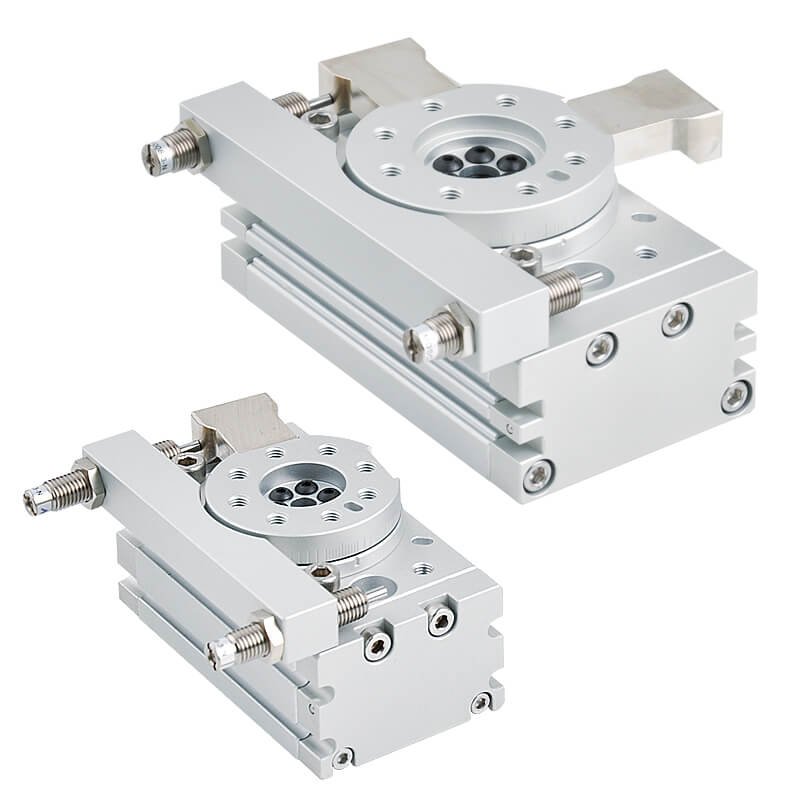

Rotary Pneumatic Cylinder, Cylinder Bore: 25mm, Rotation Angle: 180¡ã, Cushion Device: Hydraulic Shock Absorber, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MCRQ-S catalog.

Features
● Absorbs 4~10X more kinetic energy (versus internal-cushion types)
● Shorter overall length
Longitudinal mounting space is reduced, with no protruding adjustment bolts or internal cushions.

Specification

Item	Specification
Acting type	Double acting
Tube I.D. (mm)	φ16, φ20, φ25
Port size	φ16 (M5×0.8), φ20, φ25 (Rc1/8)
Medium	Air
Rotation	90°, 180°
Max. operating pressure	1 MPa (※1)
Min. operating pressure	0.2 MPa
Ambient temperature	0~+60°C (No freezing)
Allowable kinetic energy (J)	φ16 (0.231), φ20 (1.21), φ25 (1.82)
Rotation time adjustment range (s/90°)	0.2~1.0 (※2)
Cushion	Shock absorber
Shock absorber type	φ16 (MDSC-0806-3N), φ20 (MDSC-1008-3N), φ25 (MDSC-1412-3N)
Angle adjustment range	Each rotation end ±3°
Weight	90°: 0.67, 1.55, 2.52 kg, 180°: 0.64, 1.48, 2.41 kg
Sensor switch	RDC(V), RQC(V)
Remark	※1. The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber. ※2. For stable operation the time required for the rotary table to reach the rotation end after deceleration differs depending on the operating conditions (inertial moment of the load, rotation speed, and operating pressure), however, approximately 0.2 to 2 seconds are required.

Order Example

MCRQ-S Order Example
