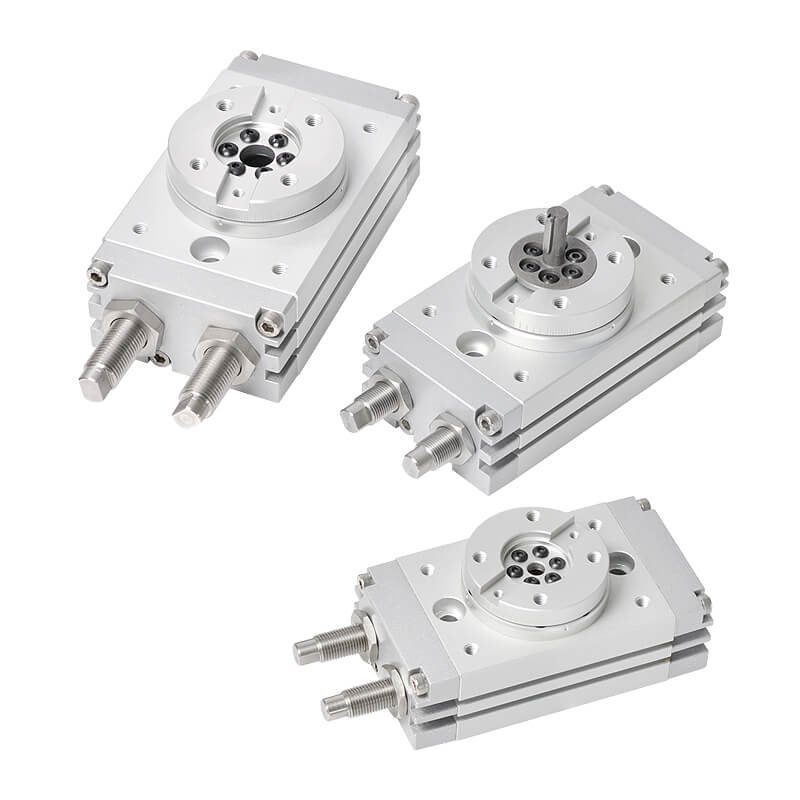

Mindman MCRB Series: Rotary Pneumatic Cylinder(Flange-Plate Rotary-Shaft Type) – MCRB-25-FR

Name: Mindman MCRB Series: Rotary Pneumatic Cylinder(Flange-Plate Rotary-Shaft Type) - MCRB-25-FR - Mindman
SKU: MCRB-25-FR
Price: 140.00 USD
Availability: InStock

SKU: MCRB-25-FR

$140.00

Rotary Pneumatic Cylinder(Flange-Plate Rotary-Shaft Type), Cylinder Bore: 25mm, Angle Adjustment: Adjustment Bolt, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MCRB catalog.

Features
● Uses dual-cylinder action with a rack-and-pinion rotary drive.
● Rotation range widely adjustable (0¡ã~190¡ã) with three body-mounting options.
● Rail-groove sensor mounting makes sensing-position adjustment easy.
● Magnet fitted across the whole series.

Specification

Item	Specification
Acting type	Double acting
Bore size	16, 20, 25, 32
Port size	Rc1/8
Medium	Air
Operating pressure range	0.1~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Lubrication	Not required
Cushion	NBR spacer
Stable rotation time	0.2~1.0 s/90°
Allowable kinetic energy	0.007J, 0.040J, 0.081J, 0.32J
Sensor switch	RCD
Weight	0.7~3.07 kg
Remark	* The shock absorber is expendable. Replace when damping performance decrease.

Order Example

MCRB Order Example

Mindman MCRB Series: Rotary Pneumatic Cylinder(Flange-Plate Rotary-Shaft Type) – MCRB-25-FR
