Mindman MCMIS Series: Sensor – RDT

Name: Mindman MCMIS Series: Sensor - RDT - Mindman
SKU: RDT
Price: 33.00 USD
Availability: InStock

SKU: RDT

$33.00

Sensor, Applicable: MCMIS Series Pneumatic Cylinder, Model: RDT

10000 in stock

Click to view the Mindman MCMIS catalog.

Features
● Lubrication-free
Uses oil-impregnated alloy and special bearing bushings so the piston rod needs no lubrication.
● High strength, chemical-resistant
Made of fully corrosion-resistant stainless steel. Available with adjustable cushioning, dual-axis, and other types.
Complies with the 2014/34/EU ATEX directive.
● Standardized design
Most parts are interchangeable with international standard ISO 6432.
● Diverse brackets
Various fixed and non-fixed brackets available.
● Magnet fitted across the whole series

Specification

Item	Specification
Tube I.D. (mm)	10, 12, 16, 20, 25
Port size	M5×0.8, Rc1/8
Medium	Air
Max. operating perssure	1.0 MPa
Min. operating perssure	0.1, 0.08 MPa
Proof pressure	1 MPa
Available speed range	50~500mm/sec
Ambient temperature	-35~+80°C (No freezing)
Lubricator	Not required
Sensor switch	RDC, RQC, RDT, RQT, RCM
Sensor switch (band)	RC: BKC-1 (Not for RCV angle cable) R*T: BKT-1 RCM: BM10~BM25

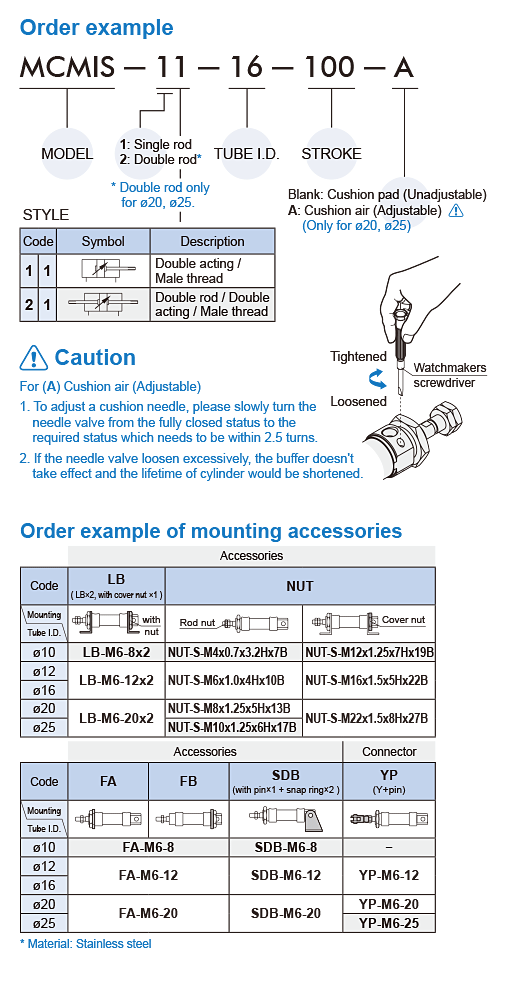

Order Example

MCMIS Order Example

Mindman MCMIS Series: Sensor – RDT
