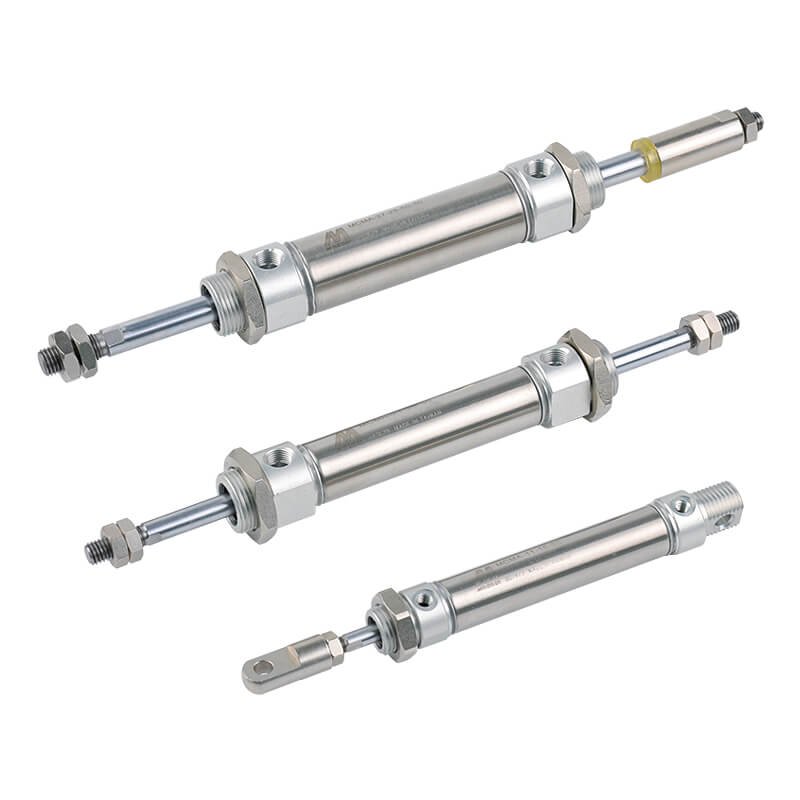

Mindman MCMA Series: Mini Pneumatic Cylinder – MCMA-11-16-100-N

Name: Mindman MCMA Series: Mini Pneumatic Cylinder - MCMA-11-16-100-N - Mindman
SKU: MCMA-11-16-100-N
Price: 46.00 USD
Availability: InStock

SKU: MCMA-11-16-100-N

$46.00

Mini Pneumatic Cylinder, Actuation Method: Double-Acting Male Thread, Operation Method: Double-Acting, Number of Axes: Single-Axis, Cylinder Bore: ø16mm, Stroke: 100mm, Cushion: Shim-Cushion Type(Non-Adjustable), Type: Tailless Type(Tail End Vehicle Flat), Port Thread: M5X0.8, Port Diameter: M5X0.8, With Magnet

10000 in stock

Click to view the Mindman MCMA catalog.

Features
● Lubrication-free
Uses oil-impregnated alloy and special bearing bushings so the piston rod needs no lubrication.
● High quality, durable
Cylinder of high-grade stainless steel for greater wear and corrosion resistance.
● Non-standard specifications can be made to order
For various rod-end sizes and strokes beyond catalog specs, please contact us for custom manufacturing.
● Diverse brackets
Various fixed and non-fixed brackets available.
● Magnet fitted across the whole series

Specification

Item	Specification
Tube I.D. (mm)	16, 20, 25, 32, 40
Port size	M5×0.8, Rc1/8
Medium	Air
Max. operating pressure	0.7 MPa
Min. operating pressure	Double: 0.06 MPa, Single: 0.15 MPa
Proof pressure	1 MPa
Ambient temperature	-5~+60°C (No freezing)
Lubricator	Not required
Available speed range	50~750 mm/sec
Max. allowable kinetic energy	Cushion pad 0.16~1.2J, Adjustable cushion 0.32~2.35J
Sensor switch	RDC, RQC, RCM
Sensor switch band	RC: BKC-1 (Not for RCV angle cable) RCM: BM16~BM40

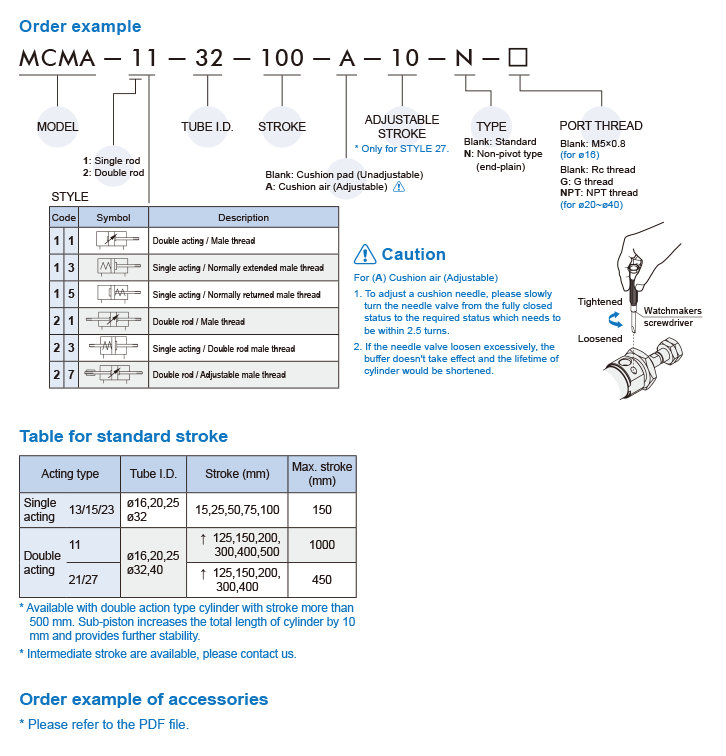

Order Example

MCMA Order Example

Mindman MCMA Series: Mini Pneumatic Cylinder – MCMA-11-16-100-N
