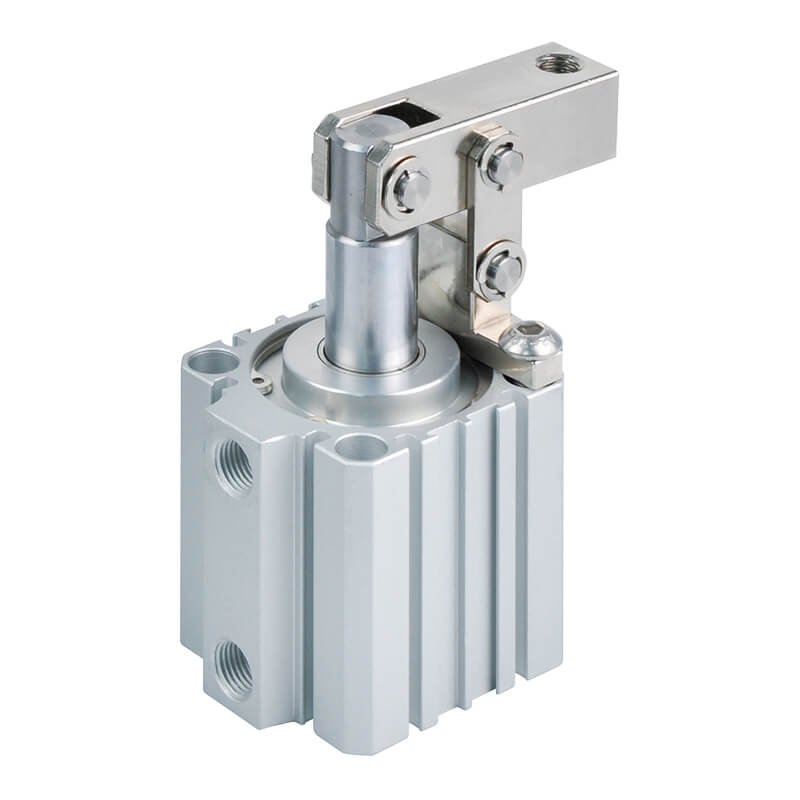

Mindman MCKB Series: Lever-Type Clamp Pneumatic Cylinder – MCKB-50-30
$362.00
Lever-Type Clamp Pneumatic Cylinder, Cylinder Bore: 50mm, Stroke: 30mm, Magnet: No With Magnet, Port Thread: Rc Thread
10000 in stock
Features
● The lever-type clamp cylinder has a light body, ideal where machining space is limited
where space is limited (e.g. CNC milling fixtures).
● Sensors can be added on all four sides of the body for simpler control in automation
for mechanical clamping or fixturing workpieces.
● The cylinder body is hard-anodized for strong wear resistance and longer life.
| Item | Specification |
|---|---|
| Acting type | Double acting |
| Tube I.D. (mm) | 25, 32, 40, 50, 63 |
| Stroke (mm) | 20, 25, 25, 30, 35 |
| Port size | M5×0.8, Rc1/8, Rc1/4 |
| Operating fluid | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −5~+60°C (No freezing) |
| Lubrication | Cylinder:Not required, Lever:Grease |
| Available speed range | 50~500 mm/sec |
| Sensor switch | RCE, RCE1, RDEP (※1) |
| Weight (g) | Without: 233, 411, 466, 832, 1111 Magnet: 270, 456, 578, 915, 1242 |
| Remark | ※1. RDEP is not suitable for ø63。 |
