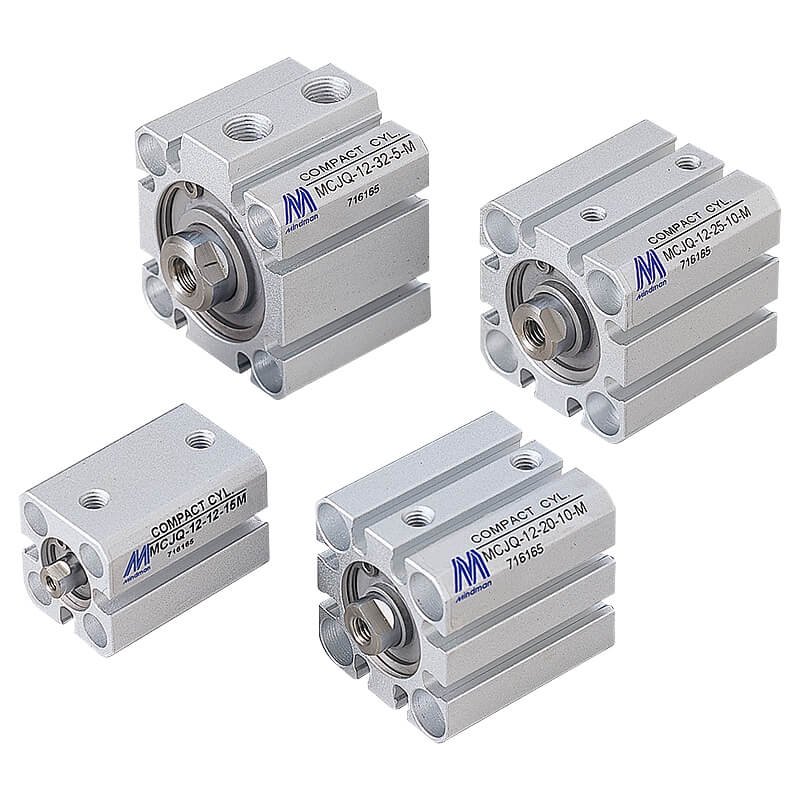

Mindman MCJQ Series: CB Mounting Accessory – CB-J1-16

Name: Mindman MCJQ Series: CB Mounting Accessory - CB-J1-16 - Mindman
SKU: CB-J1-16
Price: 58.00 USD
Availability: InStock

SKU: CB-J1-16

$58.00

CB Single Clevis(clevis)Mounting Accessory, Applicable MCJQ Inner Dia.?16, Must Matching PIN Pin

10000 in stock

Click to view the Mindman MCJQ catalog.

Features
● All products use counterbored holes and threaded mounting, needing no mounting foot, meeting space-saving requirements.
● The anodized aluminum-alloy body offers wear and corrosion resistance.
● Mounting grooves around the body make sensor installation easier.
● A compact groove design lets sensors mount flush and save space.
● Sensor mounting direction is free: ø12/?16 on three sides, ø20~?100 on four sides.

Specification

Item	Specification
Acting type	Double acting / Single acting
Tube I.D. (mm)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Port size	M5×0.8, Rc1/8, Rc1/4, Rc3/8
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	-5°C~+60°C (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RDE, RDE1E (ø12, 16); RCE, RCE1 (ø20~100 mm); RDEP (ø12, 16, 25, 40, 50, 63, 80, 100 mm)

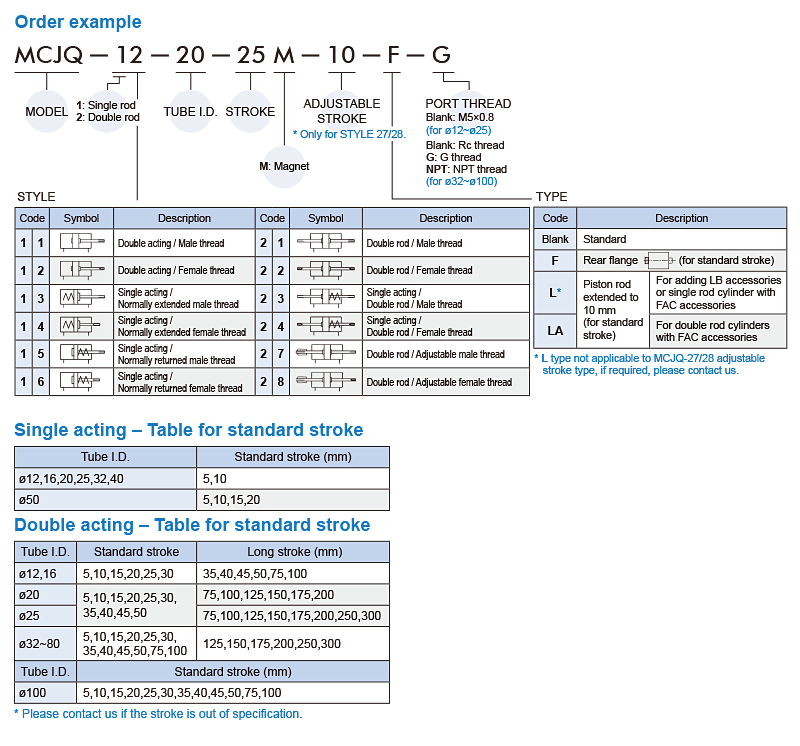

Order Example

MCJQ Order Example

Mindman MCJQ Series: CB Mounting Accessory – CB-J1-16
