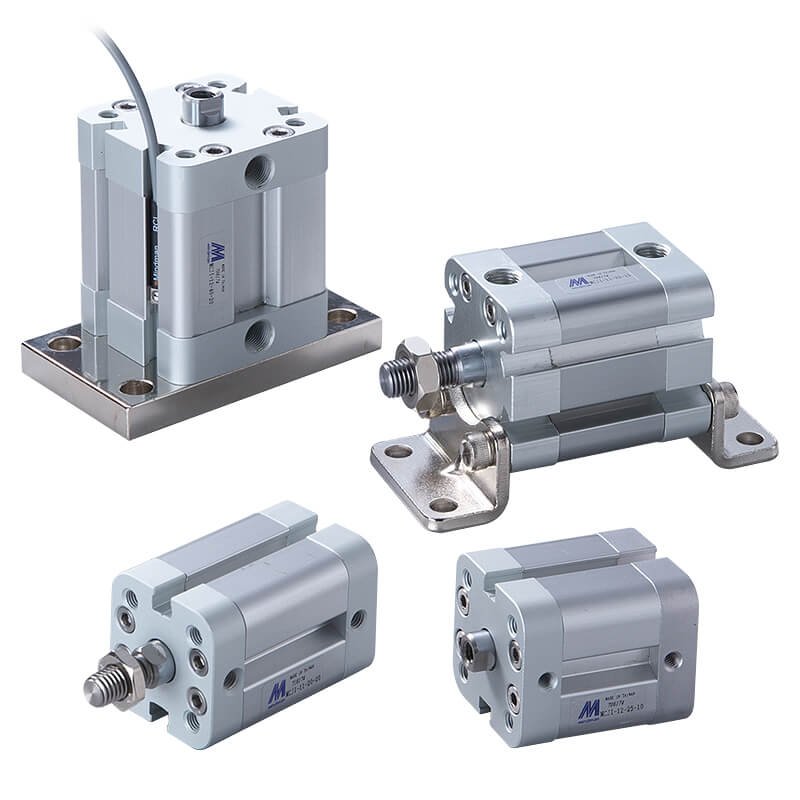

Mindman MCJI Series: Compact (Jig) Pneumatic Cylinder(ISO 21287) – MCJI-11-50-30

Mindman MCJI Series: Compact (Jig) Pneumatic Cylinder(ISO 21287) - MCJI-11-50-30

Mindman MCJI Series: Compact (Jig) Pneumatic Cylinder(ISO 21287) – MCJI-11-50-30

$510.00

Compact (Jig) Pneumatic Cylinder(ISO 21287), Actuation Method / Rod End Thread: Double-Acting Male Thread, Cylinder Bore: 50mm, Stroke: 30mm

Availability: 10000 in stock

Click to view the Mindman MCJI catalog.
SKU: MCJI-11-50-30 Category: Tag: Brand:
SKU: MCJI-11-50-30

Features
● Complies with ISO 21287.
● Mounting grooves are formed around the tube during extrusion, making sensor mounting and position
adjustment extremely easy.
● Compact mounting; the RCI sensor sits flush on the body without taking space.
● Magnet fitted across the whole series.

Weight 1 kg
Specification
Item Specification
Acting type Double acting
Tube I.D. (mm) 20, 25, 32, 40, 50, 63, 80, 100
Port size 20,25: M5×0.8, 32~100: G1/8
Medium Air
Operating pressure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5°C~+60°C (No freezing)
Available speed range 50~500 mm/sec
Lubrication Without lubrication
Cushion Rubber bumpper
Stroke length tolerance +0~+1.0 mm (※)
Sensor switch RDT, RQT, RCI
Remark (※) Stroke length tolerance does not include the amount of bumper change.
Order Example

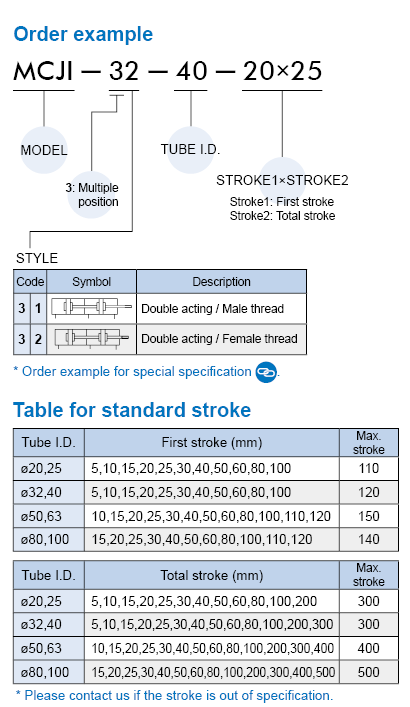

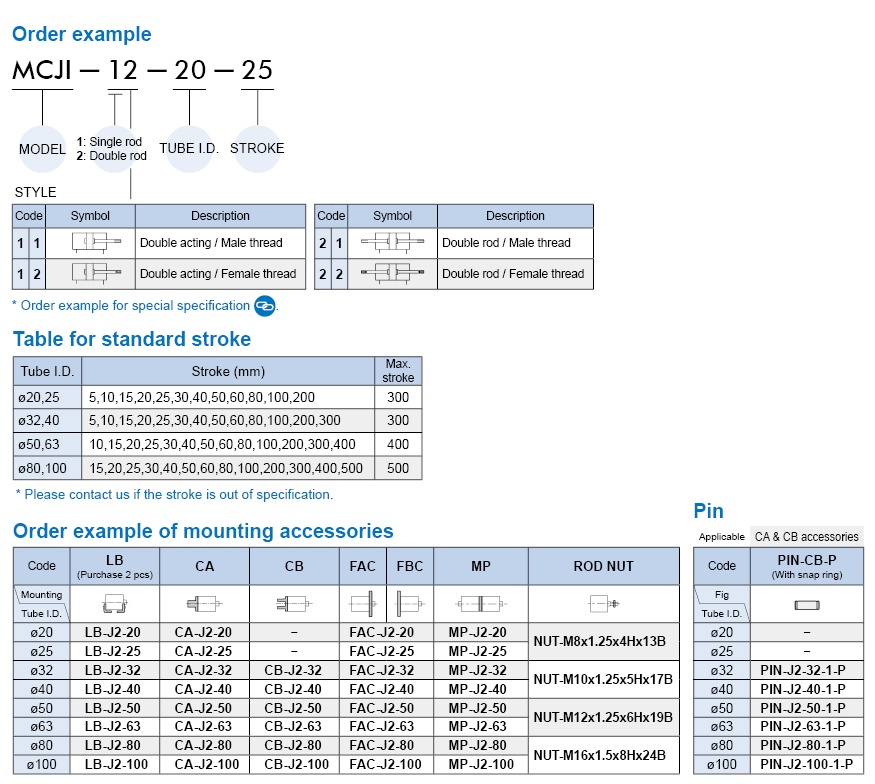

MCJI Order ExampleMCJI Multi-Position Order Example
