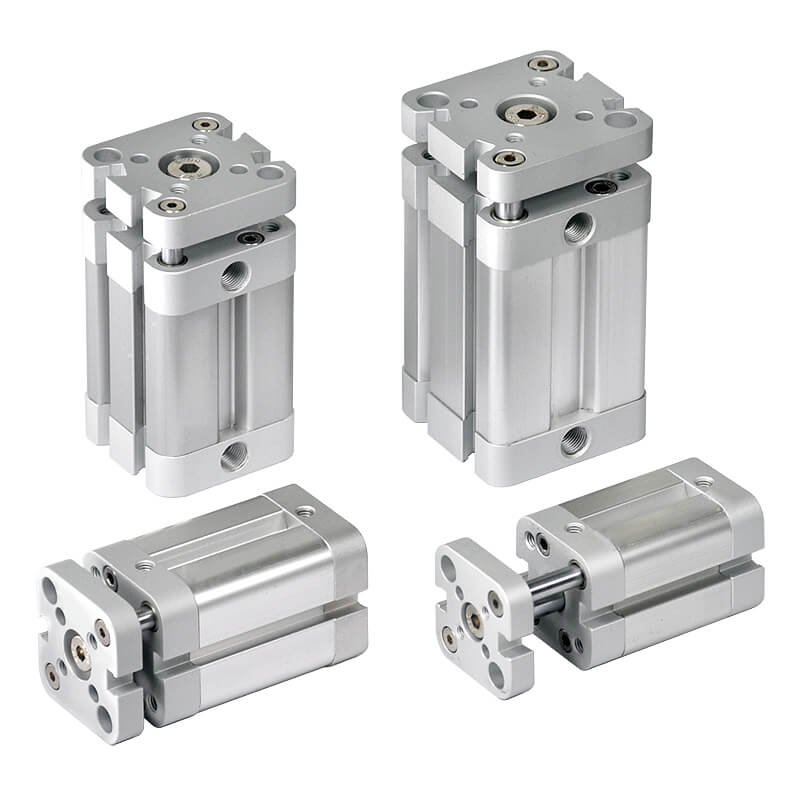

Mindman MCGI*Series: Compact Twin-Guide-Rod Pneumatic Cylinder(Lift Type/Sliding Bearing) – MCGI-12-25-15
$240.00

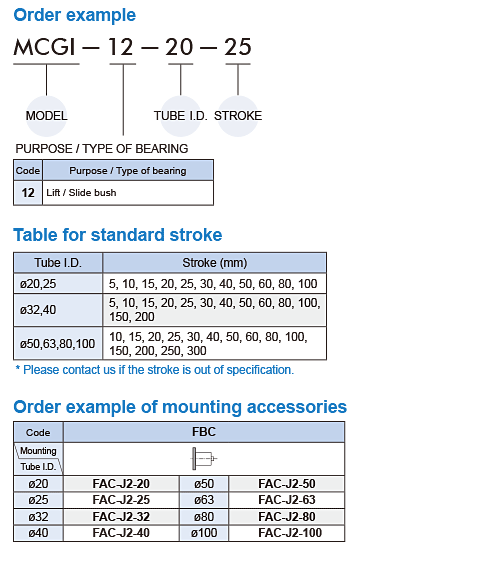

Compact Twin-Guide-Rod Pneumatic Cylinder(Lift Type/Sliding Bearing), Application: Lift Type, Bearing Type: Sliding Bearing, Cylinder Bore: 25mm, Stroke: 15mm, Port Size: M5X0.8
10000 in stock
Features
● Air pressure gives the piston rod pull and push functions, and the twin guide rods provide
precise operation.
● Mounting grooves are formed around the tube during extrusion, making sensor mounting and position
adjustment extremely easy.
● Compact mounting; the RCI sensor sits flush on the body without taking space.
● Magnet fitted across the whole series.
| Item | Specification |
|---|---|
| Acting type | Double acting |
| Tube I.D. (mm) | 20, 25, 32, 40, 50, 63, 80, 100 |
| Port size | M5×0.8, G1/8 |
| Medium | Air |
| Operating pressure range | ø20, 25: 0.15~1 MPa ø32~100: 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | -5°C~+60°C (No freezing) |
| Lubrication | Without lubrication |
| Available speed range | 50~500 mm/sec |
| Cushion | Rubber bumper |
| Stroke length tolerance | +0~+1.0 mm (※1) |
| Sensor switch | RDT, RQT, RCI |
| Remark | ※1. Stroke length tolerance does not include the amount of bumper change. |
