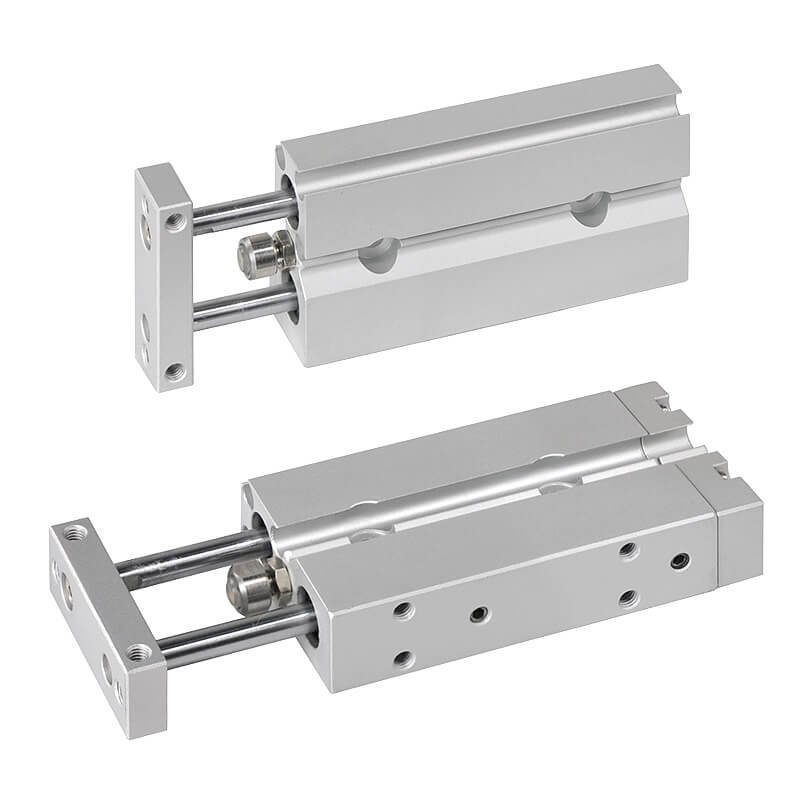

Mindman MCDJ*Series: Repair Kit(Axial Piping) – PS-MCDJ-10-P
$82.00
Dual-Rod Force-Multiplying Cylinder Repair Kit, Applicable Cylinder Bore: 10mm, Piping Method: Axial Piping
10000 in stock
Features
● This dual-rod force-multiplying cylinder provides high-precision guidance; two pistons
rod design provides double the thrust.
● Standardized allowable lateral load, and the bearing length is increased for higher precision.
● Magnet fitted across the whole series.
| Item | Specification |
|---|---|
| Acting type | Double acting |
| Tube I.D. (mm) | ø6, ø10 |
| Port size | M3×0.5, M5×0.8 |
| Medium | Air |
| Max. operating pressure | 0.7 MPa |
| Min. operating pressure | ø6: 0.15 MPa, ø10: 0.1 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | -5~+60°C (No freezing) |
| Lubrication | Not required (If lubrication is used, apply turbine oil NO1 ISO VG32) |
| Available speed range | 50~500 mm/sec |
| Cushion | With rubber cushion pad (both side) |
| Sensor switch | RDC(V), RQC(V), RDFE(V), RDGV |
