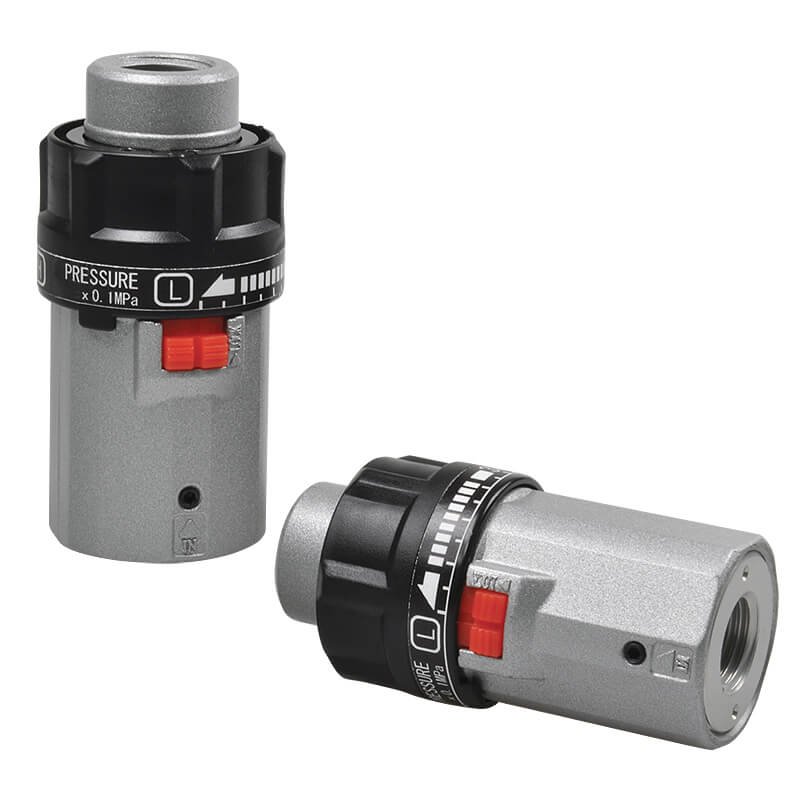

Mindman MAR300LK Series: Handheld Pressure Reducing Valve – MAR300LK-8A

Name: Mindman MAR300LK Series: Handheld Pressure Reducing Valve - MAR300LK-8A - Mindman
SKU: MAR300LK-8A
Price: 43.00 USD
Availability: InStock

SKU: MAR300LK-8A

$43.00

Handheld Pressure Reducing Valve, Port Diameter Code: 8A, Port Diameter Size: 1/4, Inlet Pressure: 0~1 MPa(T Type Handle), Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAR300LK catalog.

Features
● Lightweight and compact
Designed with no protruding handle, compact and portable. Aluminum-alloy body, approx. 80g.
● No Requires Pressure Gauge
Outlet pressure is indicated (as target) by the scale on the adjustment knob, which also has a lock
mechanism to prevent accidental turning.
● Pressure adjusts quickly and easily
Thanks to the unique knob design, pressure can be adjusted within a single turn.
● Outlet pressure can be relieved
The regulator has a relief mechanism; outlet pressure is relieved directly by turning the adjustment knob.

Specification

Item	Specification
Bore No.	8A
Port size	1/4
Medium	Air
Max. operating pressure	1 MPa, 15K: 1.5 MPa
Set pressure range	0.3~0.9 MPa
Proof pressure	3.75 MPa
Ambient temperature	0~+60°C (No freezing)
Weight	80 g

Order Example

MAR300LK Order Example

Mindman MAR300LK Series: Handheld Pressure Reducing Valve – MAR300LK-8A
