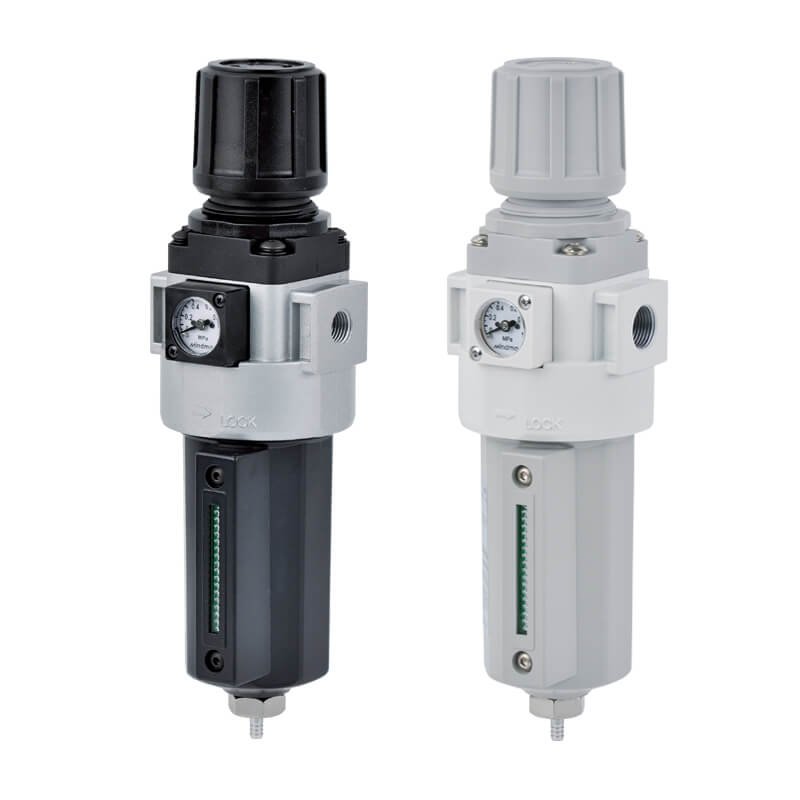

Mindman MAFR401 Series: Air Combination Unit(Filter-Regulator) – MAFR401-10A-1L-NPT

Name: Mindman MAFR401 Series: Air Combination Unit(Filter-Regulator) - MAFR401-10A-1L-NPT - Mindman
SKU: MAFR401-10A-1L-NPT
Price: 90.85 USD
Availability: InStock

SKU: MAFR401-10A-1L-NPT

$90.85

Air Combination Unit(Filter-Regulator), Port Diameter Code: 10A(3/8), Shut-off Valve (Reverse Flow): Standard, Appearance Color: Black&Silver, Relief: Relief Type, Type: Standard, Pressure Gauge: Pressure Gauge(PG-20), Drain Valve: Semi-Auto Drain Water, Pressure Sensor: Without, Flow Direction: Left¡úRight, Digital Pressure Sensor: Without, Filtration Rating: 40¦μm, Shut-off Valve: MVHR-400S-3H-AC110-L(Electric-Control Type), Port Thread: NPT Thread

10000 in stock

Click to view the Mindman MAFR401 catalog.

Features
● Port Diameter Size: 1/4, 3/8, 1/2,
●Operating pressure range: 0.05~1.5 MPa, withstand pressure: 2 MPa.
●Filtration: standard 40¦μm, optional 5¦μm

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range (※)	0.05~1.5 MPa
Proof pressure	2 MPa
Regulated pressure range	Standard type: 0.1~0.85 MPa, High pressure type: 0.1~1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Filter element	Standard: 40µm Option: 5µm
Drain capacity	70 cm³
Standard attachment	Pressure gauge (PG-20)
Optional attachment	Screw fixed bracket
Weight	800 g
Remark	※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa.

Order Example

MAFR401 Order Example
