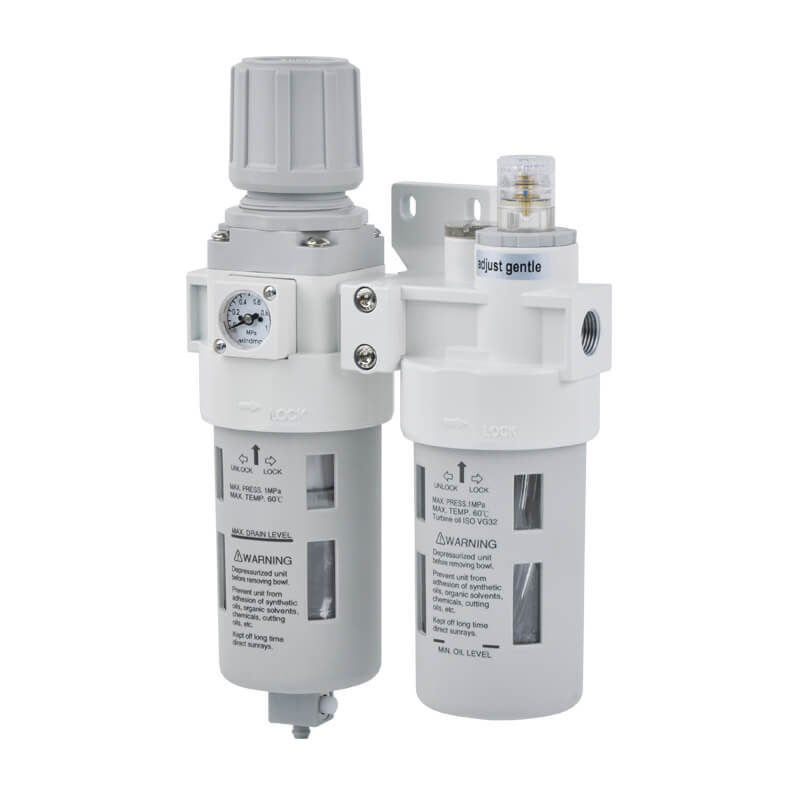

Mindman MACP403 Series: Air Unit (F.R.L. Unit) – MACP403-10A
$145.00
MACP403 air unit (F.R.L. unit),Port size:3/8″,Bowl:PC bowl,Pressure gauge:Pressure gauge (PG-20),Drain valve:Semi-auto drain,Float switch:without,Pressure switch:without pressure switch,Flow direction:Left to right,Pressure switch(digital):without,Filter element:40μm,By-pass port:without,Shutoff valve:without,Port thread:Rc thread
100000 in stock
Product Features:
● MACP403 F.R.L. air unit (MAFR403, MAL403), port size 1/4/3/8/1/2, operating pressure 0.05~1 MPa, regulated pressure 0.1~0.85 MPa.
● Filter element 40μm standard; drain capacity 75 cm³, lubricating oil capacity 200 cm³, turbine oil ISO-VG32.
● Options: digital pressure switch, auto drain, float switch, T type bracket / check valve by-pass, shutoff valve, multiple thread types.
| Item | Specification |
|---|---|
| Components | MAFR403, MAL403 |
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.1~0.85 MPa |
| Ambient temperature | −5~+60°C (no freezing) |
| Filter element | Standard:40µm Option:5µm |
| Drain capacity | 75 cm³ |
| Lubricating oil capacity | 200 cm³ |
| Min. flow for oil drip | 8A: 30 l/min, 10A: 65 l/min, 15A: 80 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge(PG-20), L-type bracket |
| Weight | 1100 g |
| Remark | ※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1MPa. |
