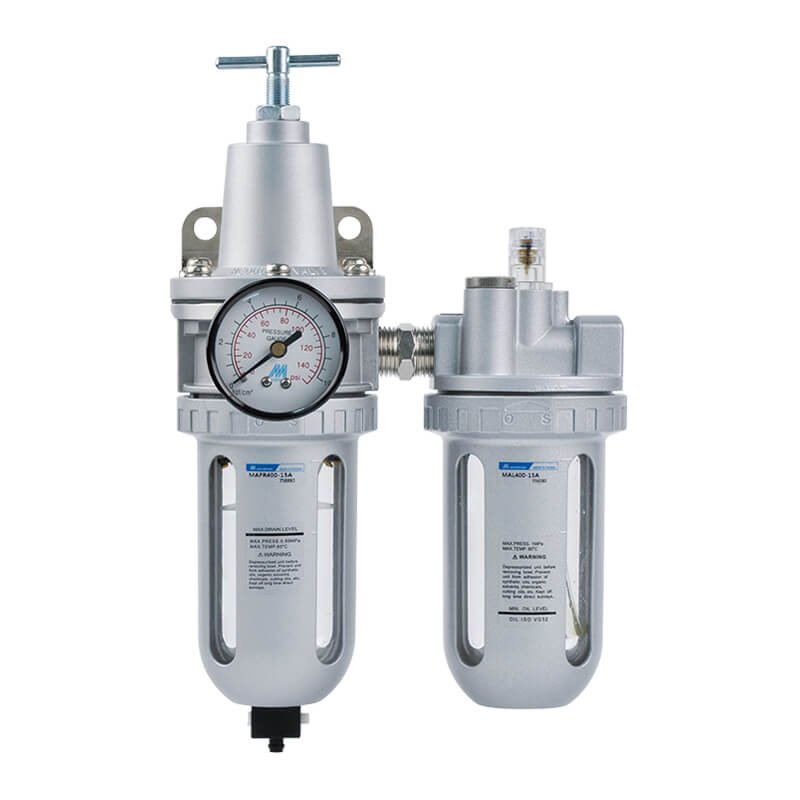

Mindman MACP400 Series: Air Combination Unit(F.R.L. Set) – MACP400-10A-D-5u
$156.80

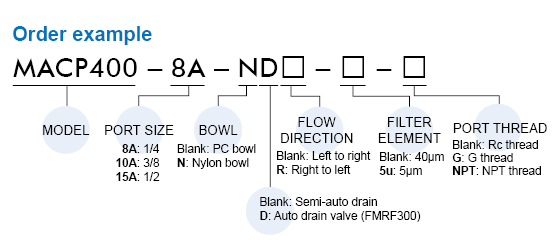

Air Combination Unit(F.R.L. Set), Port Diameter: 3/8, Bowl Material: PC Bowl, Drain Valve: Auto Drain Valve(FMRF300), Flow Direction: Left¡úRight, Filtration Rating: 5¦Ìm, Port Thread: Rc Thread
10000 in stock
Features
● Components MAFR400, MAL400
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
● Operating Fluid Air
● Operating Pressure Range (¡ù) 0.05~1 MPa
● Set Pressure Range 0.05~0.85 MPa
● Withstand Pressure 1.5 MPa
● Ambient Temperature £5~+60℃ (Non-Freezing)
●Filtration: standard 40¦Ìm, optional 5¦Ìm
| Item | Specification |
|---|---|
| Components | MAFR400, MAL400 |
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5~+60°C (No freezing) |
| Filter element | Standard: 40μm / Option: 5μm |
| Drain capacity | 100 cm³ |
| Lubricating oil capacity | 200 cm³ |
| Min. flow for oil drip | 100~400 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge (PG-50), L type bracket |
| Weight | 2300 g |
