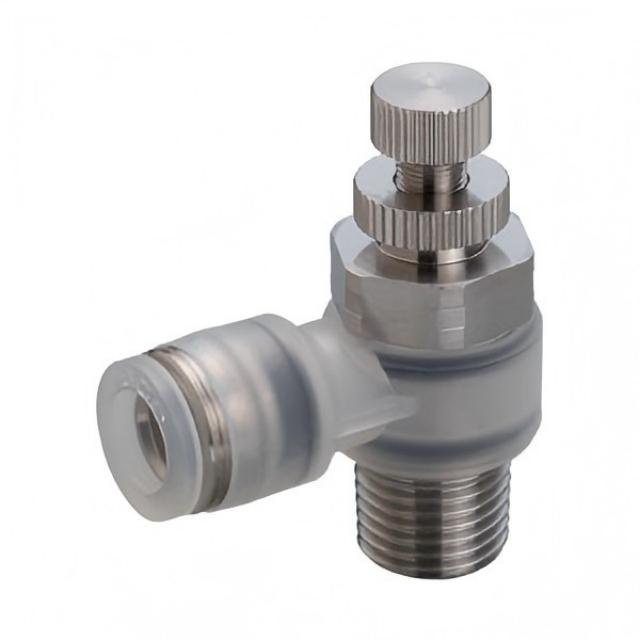

PISCO Speed Controller PP Series: Speed Controller(Elbow Type) – PJSC10-02A-F-C

Name: PISCO Speed Controller PP Series: Speed Controller(Elbow Type) - PJSC10-02A-F-C - Mindman
SKU: PJSC10-02A-F-C
Price: 5.00 USD
Availability: InStock

SKU: PJSC10-02A-F-C

$5.00

Speed Controller(Elbow Type,For Cleanroom PP Resin Quick Coupler Inner Position Speed Controller), Port Diameter: ø10mm, Thread Diameter: R1/4, Fluid Direction Control: Out-Port Control, Spring Return Spec: Standard, Rubber Material: FKM, Thread Seal: None, Cleanroom Spec: None Cleanroom Pa ckaging

10000 in stock

Features
●The body is PP resin, suited to cleanrooms and other clean environments
●The semi-transparent resin body makes hygiene inspection easy
● Seal Rubber Material Standard Spec EPDM
Can be changed to FKM or HNBR depending on the application.
● Seal Rubber FKM Material
The diaphragm is HNBR
●Complies with food-hygiene law
Sealant Sealock Spec No Applicable
The check valve operates at a low pressure of 0.005 MPa
●Easy to identify control direction
The flow-direction symbol is engraved on the upper part of the resin body (needle-valve side).
●Piping for cleanroom environments
After purging with clean air, packaged in a cleanroom (equivalent to ISO Class 6).

Specifications

Item	Specification
Working Fluid	Air, others *1
Operating Pressure Range *2	Elbow type: 0.1~1 MPa (at 0~20°C) Compact union straight type: 0.05~1 MPa (at 0~20°C)
Check Valve Operating Pressure	0.05 MPa
Operating Temperature Range	0~+80°C (non-freezing)
Notes	1. For mixed gases, etc., verify that operating conditions meet the product requirements before use. 2. For operating temperatures above 20°C, refer to the "temperature vs. maximum operating pressure" chart.
