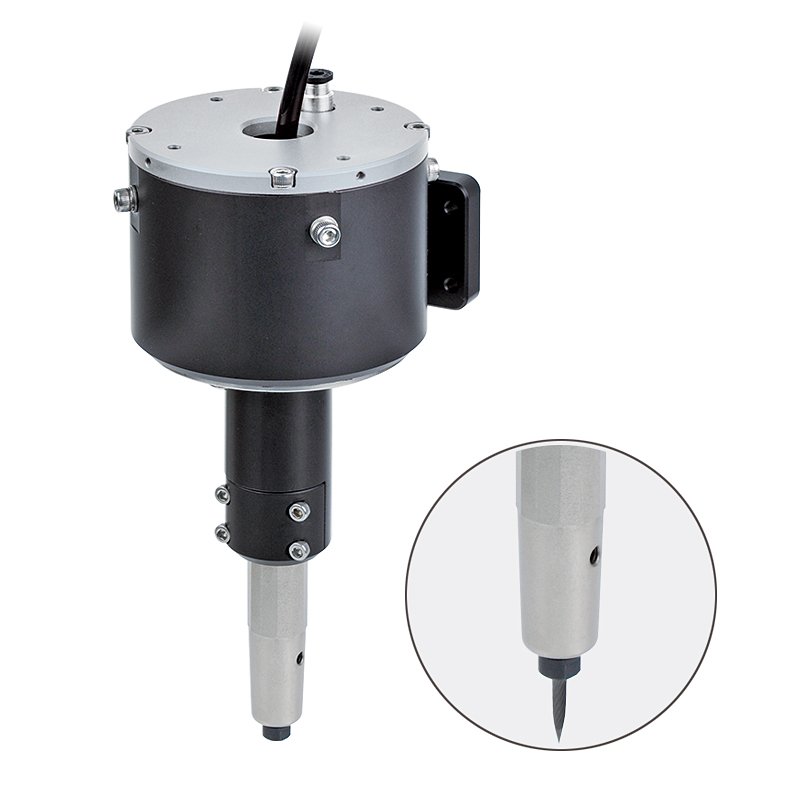

Mindman TRG20 Series: Air Spindle-Radial Floating Tool – TRG20
SKU: TRG20
$664.00
Air Spindle-Radial Floating Tool, Floating Angle: 3.5¡ã(Radial), Floating Force: 2~10N, Rated Working Pressure: Floating Force0.2~0.5MPa/Air Spindle0.6MPa, Rotation Speed: 65000RPM
10000 in stock
Features
Burrs on complex curves
● Ultra-high speed and very low floating force; air-pressure control handles tiny gaps with sensitive radial floating,
ensuring precise surface finishing, suited to deburring small parts.
● Materials: aluminum, copper, steel.
Specification
| Item | Specification |
|---|---|
| Compliant angle | 3.5° (radial) |
| Compliant force | 2-10N |
| Nominal operating pressure | Compliant force: 0.2-0.5 MPa Spindle: 0.6 MPa |
| Air source requirement | > 0.6 MPa, clean, dry, filtered ≤ 5µm |
| Air consumption | Compliant force: neglectable Spindle: 150 LPM |
| Oil consumption | 1-2 drops/min (for the spindle only, do not lubricate the compliant part) |
| Spindle type | Vane motor |
| Spindle idle speed | 65000 RPM |
| Cutter shank diameter | 3 mm |
| Ambient temperature | +5~+35°C |
| Ambient moisture | < 95% |
| Weight | 1.3 kg |
| Remark | ※ Please contact our sales department when the product requires to be repaired and replacement of consumables. Unauthorized disassembly will void the warranty. |
