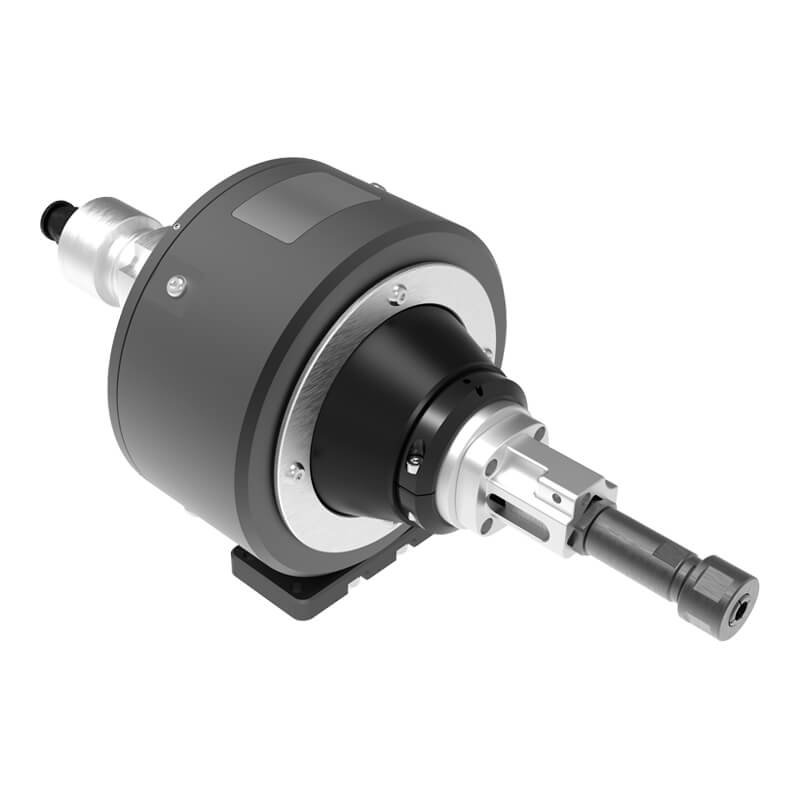

    Mindman TRF20 Series: Air File-Radial Floating Tool - TRF20

    Mindman TRF20 Series: Air File-Radial Floating Tool – TRF20

    SKU: TRF20

    $420.00

    Air File-Radial Floating Tool, Floating Angle: 3.5¡ã(Radial), Floating Force: 12~30N, Rated Working Pressure: Floating Force0.2~0.5MPa/Air File0.6MPa, Filing Frequency: 5000BPM

    10000 in stock

    Features
    ● Burrs on complex curves.
    ● Air-pressure control handles tiny gaps with angular floating for precise surface finishing,
    used with file-type tools.
    ● Materials: aluminum, copper, steel, plastic, composites, wood.

    Item Specification
    Compliant angle 3.5° (radial)
    Compliant force 12-30N
    Rated operate pressure Compliant: 0.2~0.5 MPa
    Spindle: 0.6 MPa
    Air consumption Compliant force: neglectable
    Spindle: 170 LPM
    Recomm. lubricating oil (※1) Turbine oil ISO-VG32
    Oscillating speed 5000 BPM
    Compliant stroke 10 mm
    Collet size 6 mm (File)
    Weight 3 kg
    Remark ※1. Only for the pneumatic spindle. Adjust oil quantity as needed.
    ※2. Do not disassemble this product yourself. For repairs or replacement of consumables, please contact our sales.
    ※3. Options: High-force compliance type available for large or high-hardness materials.
