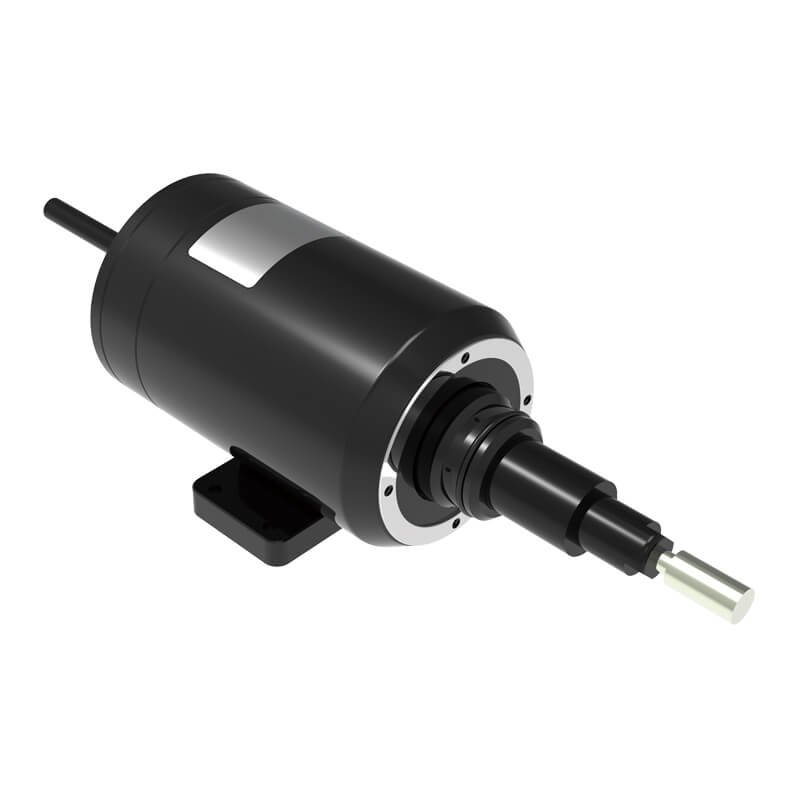

    Mindman TLG30 Series: Air Spindle-Linear Floating Tool - TLG30

    Mindman TLG30 Series: Air Spindle-Linear Floating Tool – TLG30

    SKU: TLG30

    $414.00

    Air Spindle-Linear Floating Tool, Floating Stroke: 10mm(One-Way), Floating Force: 5~20N, Rated Working Pressure: Floating Force0.2~0.5MPa/Air Spindle0.6MPa

    10000 in stock

    Features
    ● Air-pressure control handles tiny gaps with sensitive linear floating for a precise surface
    finishing.
    ● Materials: aluminum, copper.

    Item Specification
    Compliant stroke 10 (One-sided)
    Compliant force 5~20 N
    Rated operate pressure Compliant force: 0.2-0.5 MPa
    Spindle: 0.6 MPa
    Air source requirement 0.6 MPa
    Air consumption Compliant: Neglectable
    Spindle: 350 LPM
    Recomm. lubricating oil (※1) Turbine oil ISO-VG32
    Oscillating speed 35000 RPM
    Collet size ø3, ø6 mm grinding material with shank
    Ambient temperature +5~+35°C
    Ambient humidity < 95%
    Weight 1.7 kg
    Remark ※1. Only for the pneumatic spindle. Adjust oil quantity as needed.
    ※2. Do not disassemble this product yourself. For repairs or replacement of consumables, please contact our sales.
    ※3. Cannot be used with side milling cutters.
    ※3. Can be used with 90° conical milling cutters for deburring small-diameter hole edges.
