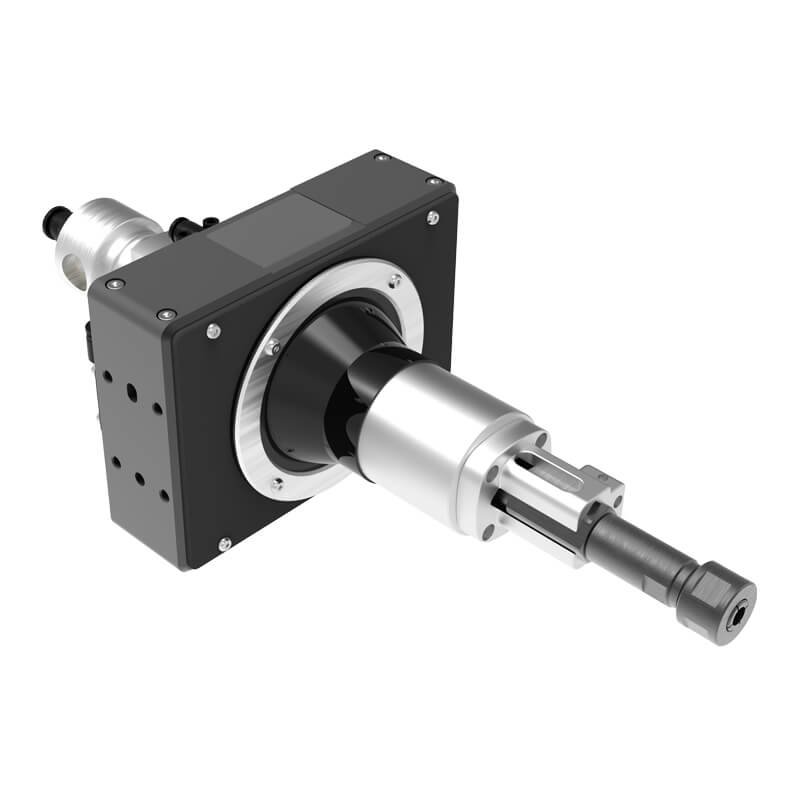

    Mindman TAF20 Series: Air File Machine-Angular Floating Tool - TAF20

    Mindman TAF20 Series: Air File Machine-Angular Floating Tool – TAF20

    SKU: TAF20

    $340.00

    Air File Machine-Angular Floating Tool, Floating Angle: ±5.5¡ã, Floating Force: 6~15N, Rated Working Pressure: Floating Force0.2~0.5MPa/Air Spindle0.6MPa

    10000 in stock

    Features
    ● Air-pressure control handles tiny gaps with angular floating for a precise surface
    finishing, and can be used with file-type tools.
    ● Materials: aluminum, copper, steel, plastic, composites, wood

    Item Specification
    Compliant angle ±5.5° (Angular)
    Compliant force 6-15N
    Rated operate pressure Compliant: 0.2-0.5 MPa
    Spindle: 0.6 MPa
    Air source requirement > 0.6 (Dry, filtered ≤ 5µm)
    Air consumption Compliant force: neglectable
    Pneumatic file: 170
    Recomm. lubricating oil (※1) Turbine oil ISO-VG32
    Oscillating speed 5000 BPM
    Frequency 10 mm
    Collet size 6 mm (Flat file)
    Ambient temperature +5~+35°C
    Ambient humidity < 95%
    Weight 2 kg
    Remark ※1. Only for the pneumatic file. Adjust oil quantity as needed.
    ※2. Do not disassemble this product yourself. For repairs or replacement of consumables, please contact our sales.
