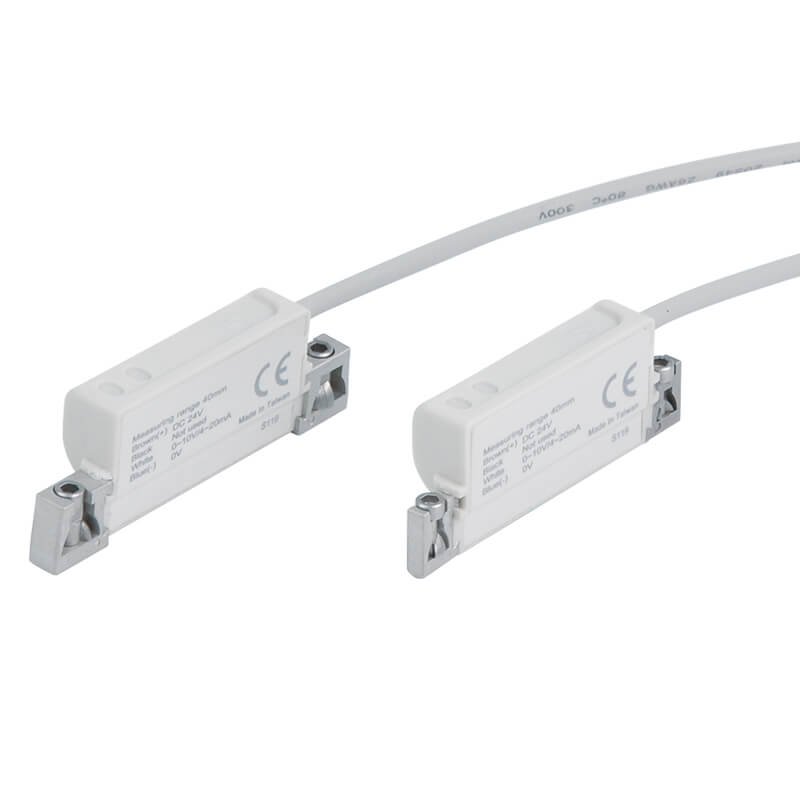

Mindman RLZ Series: Linear Position Sensor(C-Type Groove) – RLZ-C040-QD
$120.00
Linear Position Sensor, Groove Type: C-Type Groove, Measuring Range: 40mm, Analog Output: Voltage0~10V/Current4~20m A Switchable, Wire Length: M8 3 Pin Termin al Type
10000 in stock
Features
● Repeatability ±0.01mm
● Reversible analog output (0~10V/10~0V) (4~20mA/20~4mA)
● High sampling rate ¡Ü0.3ms
● Analog output, voltage or current selectable
● Measuring range freely settable
| Item | Specification |
|---|---|
| Measuring range | 40±1 mm |
| Power supply voltage | 15 ~ 30 V DC, Ripple ( P-P ) ≤ 10 % |
| Current consumption | ≤ 15 mA ( with no load ) |
| Displacement resolution | 0.001 mm (※1) |
| Linearity error | ± 0.2 mm @ 25 °C (※1) |
| Repeatability | ± 0.01 mm @ 25 °C (※1,2) |
| Sampling time | ≤ 0.3 ms |
| Analog voltage output | Voltage Output : 0 ~ 10 V (※3) Max. Load Resistance, Current Output : 2 KΩ Linearity : ± 0.05 % F.S. @ 25 °C Sensitivity : 0.25 mV/µm |
| Analog current output | Current Output : 4 ~ 20 mA (※4) Min. Load Resistance, Voltage Input : 500 Ω Linearity : ± 0.05 % F.S. @ 25 °C Sensitivity : 0.4 µA/µm |
| Magnetic field strength | 20 ~ 200 Gauss (※1,5) |
| Environment-Enclosure | IP69 IEC 60529 |
| Environment-Ambient temp. Range | Operation : 0 ~ 50 °C, Storage : −10 ~ 60 °C ( No condensation or freezing ) |
| Environment-Ambient humidity range | Operation / Storage : 35 ~ 85 % RH ( No condensation) |
| Environment-Withstand voltage | 1000 V AC in 1-min ( between case and lead wire ) |
| Environment-Insulation resistance | ≥ 50 MΩ ( at 500 V DC, between case and lead wire ) |
| Environment-Shock | 30 G (※6) |
| Environment-Vibration | 10 G (※7) |
| Indicator | Red, Green, Blue, White |
| Lead wire | ø2.9 PUR - 26AWG ( 0.15mm2 ) - 3 cores |
| Protection circuit | Power source reverse polarity, Surge suppression |
| Weight (with 2M lead wire) | Approx. 33 g (C type), Approx. 37 g (T type) |
| Remark | ※1. Measuring standard target : Ø15.5 × Ø8 × 5t ( Anisotropy rubber magnet ) ※2. Repeatability with magnet movement from one direction. ※3. If analog voltage output is selected, the analog current output cannot be selected at the same time. ※4. If analog current output is selected, the analog voltage output cannot be selected at the same time. ※5. The analog measured value can deviate according to different conditions. ※6. Sin wave / X , Y , Z 3 directions / 3 times each direction / 11 ms each time. ※7. Double amplitude 1.5 mm or 10 G / 10 Hz ~ 55 Hz ~ 10 Hz ( Sweep 1 min ) / X, Y, Z 3 directions / 2 hours each time. |
