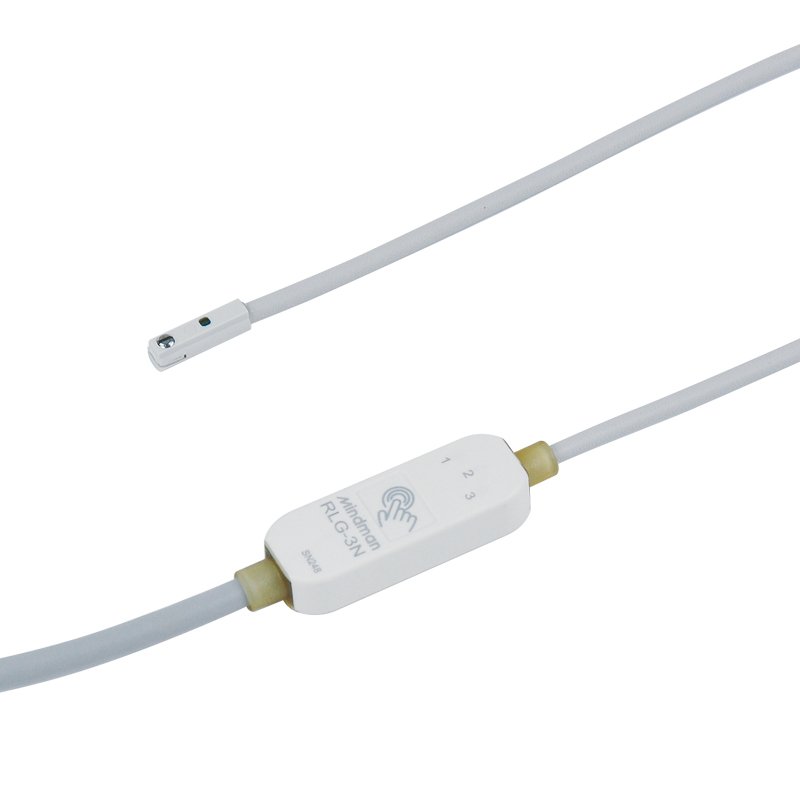

Mindman RLG Series: Three-Point Position Sensor – RLG-3P-QD
$109.00
Three-Point Position Sensor, Model: RLG-3P(3 PNP), Measuring Range: 50mm, Wire Length / Connector: M12 5PIN Termin al Type, Applicable Gripper Model: MCHC-6/MCHD/MCHH/MCHU/MCHS/MCHX/MCHG2/MCHJ/MCHY2/MCRT
10000 in stock
Features
●Switch logic: electronic solid-state, switchable N.O./N.C.
●Contact type: solid-state NPN 3-point, solid-state PNP 3-point
● Operating Voltage Range 5 ~ 30 V DC
● Max Switching Current 150 mA max. (¡ù2)
●Supply voltage 30 V DC (Note 2)
● Contact Capacity 4.5 W max. (¡ù2)
● Current Consumption 20 mA @ 24V DC max.
●Internal voltage drop 1.5 V max. (with resistive load) (Note 2)
● Leakage Current 0.01 mA max.
| Item | Specification |
|---|---|
| Measuring range | 50 mm (※1) |
| Switching logic | Solid state output, normally open / normally close switchable |
| Switch type | 3 NPN current sinking, 3 PNP current sourcing |
| Operating voltage | 5 ~ 30V DC |
| Switching current | 150 mA max. (※2) |
| Power supply voltage | 30 V DC (※2) |
| Contact rating | 4.5 W max. (※2) |
| Current consumption | 20 mA @ 24 V DC max. |
| Voltage drop | 1.5 V max. (with resistive load) (※2) |
| Leakage current | 0.01 mA max. |
| Repeatability | ≤ 0.01 mm |
| Indicator | Yellow LED, Green LED, Red LED |
| Cable | ø4 PVC - 26 AWG ( 0.15mm² ) - 5 cores |
| Operating frequency | 50 Hz |
| Magnet requirement | 40 ~ 1000 Gauss (※3) |
| Temperature range | −10 ~ 70 °C |
| Shock | 50 G (※4) |
| Vibration | 9 G (※5) |
| Enclosure classification | IEC 60529 IP69 |
| Protection circuit | 2, 3, 4 (※6) |
| Weight | 54 g |
| Remark | ※1: The difference of magnetism, environment, and interference of magnetic field can cause the deviation of measurement. ※2: The standard is for each output. ※3: Measuring standard target: ø15.5 × ø8 × 5t ( Anisotropy rubber magnet ) ※4: Sin wave / X , Y , Z 3 directions / 3 times each direction / 11 ms each time. ※5: Double amplitude 1.5 mm / 10 Hz ~ 55 Hz ~ 10 Hz ( Sweep 1 min ) / X , Y , Z 3 directions / 1 hour each time. ※6: 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
