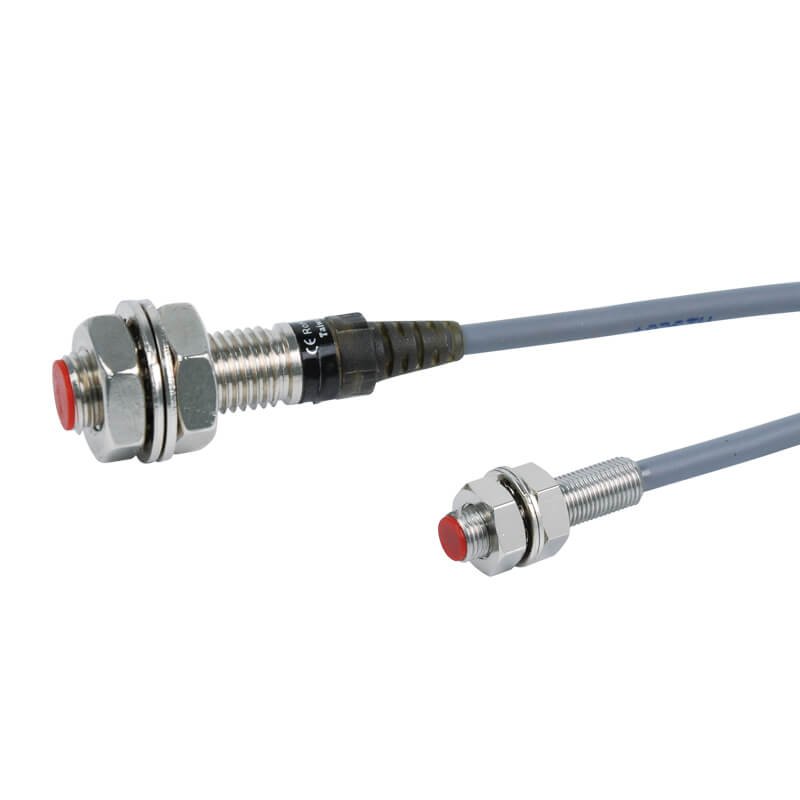

Mindman RJY Series: Proximity Sensor – RJY-P-M8-3M
SKU: RJY-P-M8-3M
$25.00
Proximity Sensor, Contact Type: Solid-State PNP, Body Thread: M8¡Á1.0, Wire Length: 3000mm, Applicable Gripper: MCHJ/MCHS
10000 in stock
Features
● Applicable Gripper Model: MCTC, MCHJ, MCHS,
●Operating voltage: 10~30V DC,
● Current Consumption: 10mA max,
● Output Current: 150m A max II
Specification
| Item | Specification |
|---|---|
| Body thread | M5, M8 |
| Operating voltage | 10~30V DC |
| Power ripple | 20% peak to peak |
| Current consumption | 10mA max. |
| Detection distance | M5: 1.0±0.2 (steel) M8: 1.8~2.0 (steel), 0.4~0.6 (aluminum) |
| Hysteresis | 10% of sensing distance max. |
| Response frequency | 2.5KHz min. |
| Output type | NPN, PNP |
| Output logic | N.O. |
| Output current | 100mA, 150mA max. |
| Residual voltage | 0.1V max. |
| Leakage current | 0.8mA max. |
| Protection type | Short circuit & polarity reversed protection |
| Indicator (LED) | Green, White |
| Cable | 3c/ø3, gray cover, oil and shaking resistance |
| Maximum voltage resistance | 2.5kv / 1 minute min. |
| Operating environment | −20°C ~ +80°C, 35% ~ 85% RH |
| Protection class | IP 67 |
