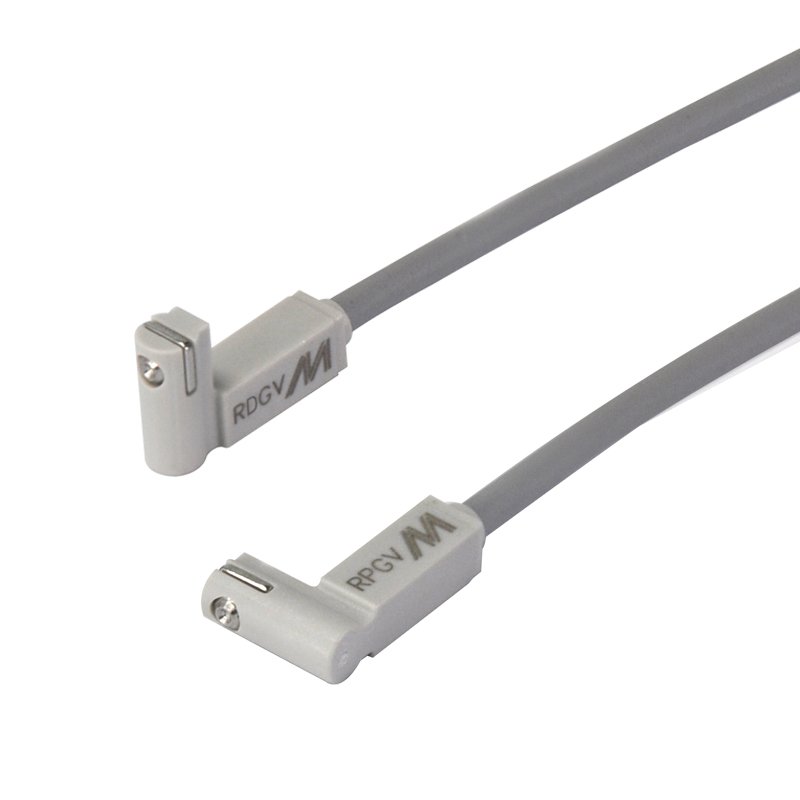

Mindman RDGV Series: Sensor – RPGV-EQD
$22.00
Sensor, Model: RPGV(Solid-State PNP), Wiring Type: Wiring Vertical, Wire Length / Connector: M8 3PIN Termin al Type(European Termin al), Applicable Gripper Model: MCHJ-50
10000 in stock
Features
● Wiring Method RDGV: 2-Wire, RNGV,RPGV: 3-Wire
● Switch Logic Electronic Solid-State,N.O. Type
● Contact Type RDGV: Solid-State, RNGV: Solid-State NPN, RPGV: Solid-State PNP
● Operating Voltage Range RDGV: 10~28V DC, RNGV, RPGV: 4.5~28V DC
● Max Switching Current RDGV: 4~20mA max. RNGV, RPGV: 50mA max.
● Contact Capacity RDGV: 0.6W max. RNGV, RPGV: 1.5W max. (¡ù1)
● Current Consumption RNGV, RPGV: 10mA @24V DC max
● Internal Voltage Drop RDGV: 3.5V max. RNGV, RPGV: 0.5V @ 50mA max.
| Item | Specification |
|---|---|
| Wiring method | 2 wire (RDGV), 3 wire (RNGV, RPGV) |
| Switching logic | Solid state output, Normally open |
| Switch type | NPN current sinking (RNGV), PNP current sourcing (RPGV) |
| Operating voltage | 10~28V DC(RDGV), 4.5~28V DC(RNGV, RPGV) |
| Switching current | 4~20mA max.(RDGV), 50mA max.(RNGV, RPGV) |
| Contact rating | 0.6W max.(RDGV), 1.5W max.(RNGV, RPGV) (※1) |
| Current consumption | 10mA @24V DCmax.(RNGV, RPGV) |
| Voltage drop | 3.5V max.(RDGV), 0.5V @ 50mA max.(RNGV, RPGV) |
| Leakage current | 0.8mA max.(RDGV), 0.01mA max.(RNGV, RPGV) |
| Indicator | Red LED |
| Cable | 2.6φ, 2C, 26AWG(Gray PU)(RDGV), 2.6φ, 3C, 26AWG(Gray PU)(RNGV, RPGV) |
| Operating Frequency | 1000 Hz |
| Ambient temperature | −10°C~+70°C (No freezing) |
| Shock | 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 4 (RDGV), 3, 4 (RNGV, RPGV) (※4) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 Directions / 3 Times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) /X.Y.Z. 3 Directions / 1 Hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
