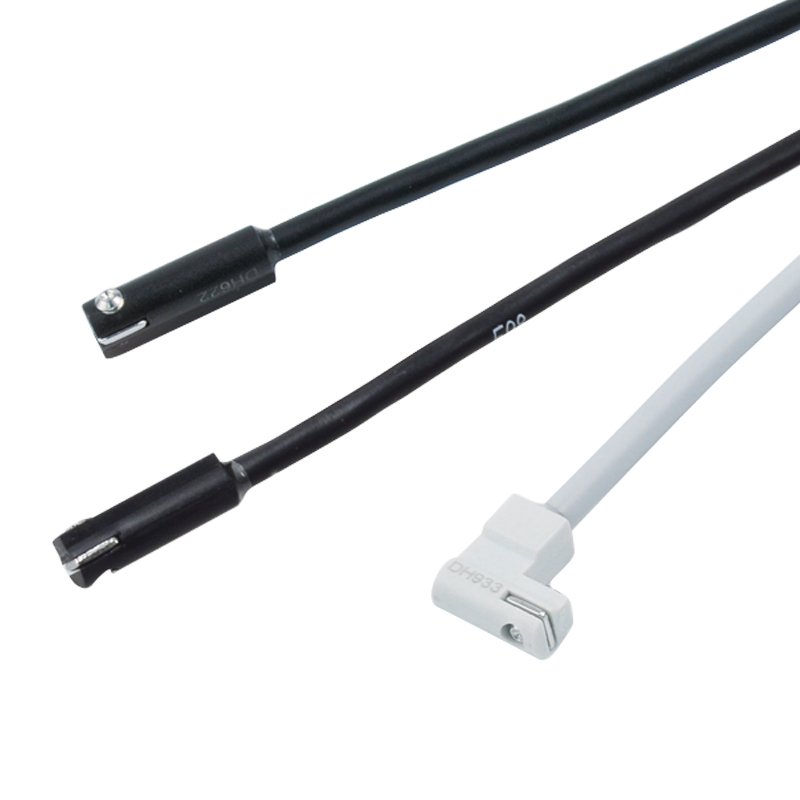

Mindman RDF Series: Sensor – RDFEV-QD
$25.00
Sensor, Model: RDFE(Solid-State), Wiring Type: Wiring Vertical, Wire Length / Connector: M8 3PIN Termin al Type, Applicable Cylinder Model: 20-MCFB/20-MCMJP/20-MCRQ/20-MCRQ-S
10000 in stock
Features
● Wiring Method 2-Wire, 3-Wire
● Switch Logic Electronic Solid-State, N.O. Type
● Contact Type Solid-State, Solid-State NPN, Solid-State PNP
● Operating Voltage Range 5~30V DC
● Max Switching Current 50mA, 80mA (max.)
● Contact Capacity 1.5W, 2.2W (max.) (¡ù1)
● Current Consumption 10mA, 6mA @24V DC (max.)
● Internal Voltage Drop 3.5V, 0.5V @ 50mA (max.)
| Item | Specification |
|---|---|
| Wiring method | 2 wire, 3 wire |
| Switching logic | Solid state output, normally open |
| Switch type | Without contant, NPN current sinking, PNP current sourcing |
| Contact rating | 0.6W, 1.5W (max.) (※1) |
| Operating voltage | 10~28V DC, 5~30V DC, 4.5~28V DC |
| Switching current | 4~20mA, 50mA (max.) |
| Current consumption | 10mA @24V DC max. |
| Voltage drop | 3.5V, 0.5V @ 50mA (max.) |
| Leakage current | 0.8mA, 0.1mA, 0.01mA max. |
| Indicator | Red LED |
| Cable | 2.6φ,2C,PVC, 2.6φ,3C,PVC |
| Temperature range | −10°C~+70°C (No freezing) |
| Shock | 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 4, 3,4 (※4) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) /X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
