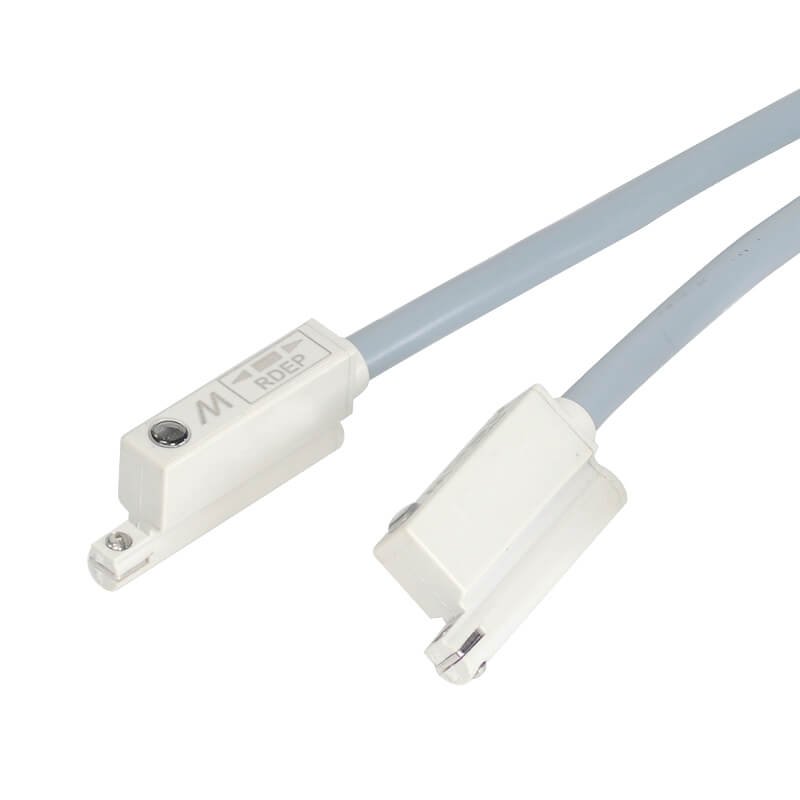

Mindman RDEP Series: Sensor(Strong-Field Resistant) – RDEP-3M
SKU: RDEP-3M
$28.00
Sensor(Strong-Field Resistant), Solid-State, Wiring Method: 2-Wire, Wire Length: L=3000mm, Applicable Environment: Strong Magnetic Field(Automotive/Point Welding Peripheral)
10000 in stock
Features
● Usable in strong magnetic-field environments, e.g. automotive industry, near
spot-welding areas.
● When an AC magnetic field (50 or 60Hz) is detected, the sensor still
remains unaffected and holds its state.
Specification
| Item | Specification |
|---|---|
| Wiring method | 2 wire |
| Switching logic | Solid state output, normally open |
| Switch type | Current sourcing |
| Operating voltage | 10~28V DC |
| Switching current | 5~50mA max. |
| Switching rating | 1.5W max. (※1) |
| Voltage drop | 5V max. |
| Leakage current | 1mA max. |
| Indicator | Unstable: Red LED ; Stable: Green LED |
| Cable | φ4.8, 2C, PVC |
| Temperature range | −10°C~+60°C (No freezing) |
| Shock | 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 3 , 4 (※4) |
| Weight | 100g (3m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
