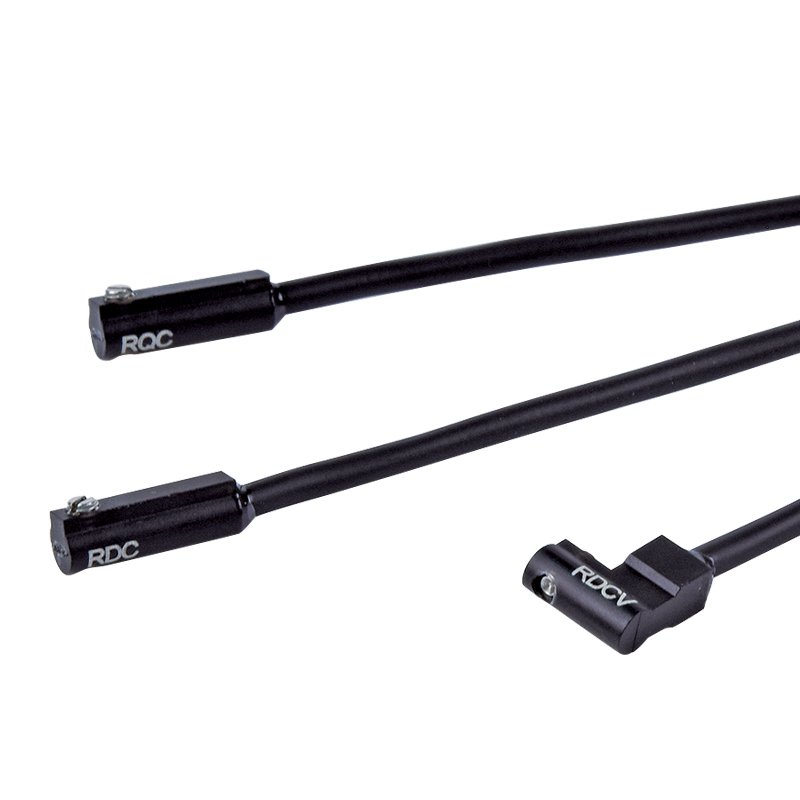

Mindman RDC Series: Sensor Mounting Bracket(With Cable Tie) – BKC-1
$57.00
Sensor Mounting Bracket(With Cable Tie), Applicable Model: MCMA Cylinder(?16/?20/?25/?32/?40), Tightening Torque: 2kgf.cm, Remarks: No Applicable Vertical Wiring Type(V)
10000 in stock
Features
● Wiring Method 2-Wire, 3-Wire
● Switch Logic N.O. Type
● Contact Type Solid-State, Solid-State NPN, Solid-State PNP
● Operating Voltage Range 5~30V DC
● Max Switching Current 50~80mA max.
● Contact Capacity 1.5~2.4W max. (¡ù1)
● Current Consumption 2mA @24V DC max. (¡ù5)
● Internal Voltage Drop 4.0V@50mA max, 1.2V@80mA max. (¡ù5)
● Leakage Current 0.1mA max, 0.01mA max. (¡ù5)
● Sensing Magnetic Field Strength 40~1000 Gauss (¡ù5,6)
| Item | Specification |
|---|---|
| Wiring method | 2 wire, 3 wire |
| Switching logic | Normally open |
| Switch type | Non-contact, NPN current sinking, PNP current sourcing |
| Operating voltage | 5~30V DC |
| Switching current | 50~80mA max. |
| Contact rating | 1.5~2.4W max. (※1) |
| Current consumption | 2mA @24V DC max. (※5) |
| Voltage drop | 4.0V@50mA max, 1.2V@80mA max. (※5) |
| Leakage current | 0.1mA max, 0.01mA max. (※5) |
| Magnet requirement | 40~1000 Gauss (※5,6) |
| Indicator | Red LED |
| Cable | ø2.6, 27AWG, Black, PVC |
| Operating frequency | 1000 Hz |
| Temperature range | –10~+70°C (No freezing) |
| Shock | 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | 2, 3, 4, 5 (※4,7) |
| Weight | 17~19 g (2m cable) |
| Connect diagram | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression / 5=Sensor thermal protection. ※5. It bases on conditions of voltage 24V DC, ambient temp. 25°C and cable 2M length. Voltage drop increases in pace with cable length. ※6. Measuring standard target : ø15.5 × ø8 × 5t ( Anisotropy rubber magnet ) ※7. The LED will flash when short-circuit or sensor thermal protection is ON. ※8. Please turn off the power before installing or changing the output contact, and ensure the load is installed according to the wiring diagram to prevent abnormal operation or product malfunction. |
