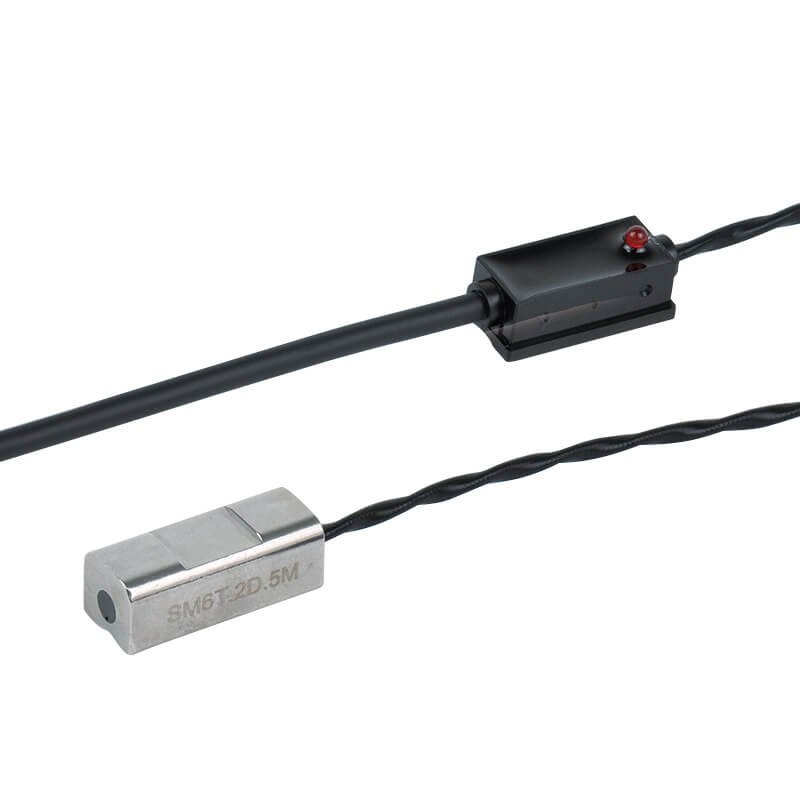

    Mindman RCV Series: Sensor(Stainless Steel) - RCV-5M

    Mindman RCV Series: Sensor(Stainless Steel) – RCV-5M

    SKU: RCV-5M

    $25.00

    Sensor(Stainless Steel), Reed, Wiring Method: 2-Wire, Switch Logic: SPSTN.O. Type, Housing Material: AISI 316 Stainless Steel, Wire Length: 5000mm

    10000 in stock

    Features
    ● AISI 316 stainless steel; suitable for chemical and food industries.
    ● For corrosion-resistant, high-temperature, and stamping environments.

    Item Specification
    Wiring method 2 wire
    Switching logic SPST N.O.
    Switch type Reed switch
    Operating voltage 5~240V DC/AC
    Switching current 100mA max.
    Switching rating 10W max. (※1)
    Voltage drop 3.5V max.
    Indicator Red LED
    Housing switch material Sensor switch: AISI 316, LED box: ABS
    Cable Teflon: φ4, L=4000mm, PVC: φ3, L=1000mm
    Temperature range −10°C~+140°C (Sensor switch only)
    Enclosure classification IEC 529 IP67
    Weight 91g (2m cable)
    Connect diagram ※1: Warning: Never exceed rating (watt=voltage×amperage).
    Permanent damage to sensor will occur.
