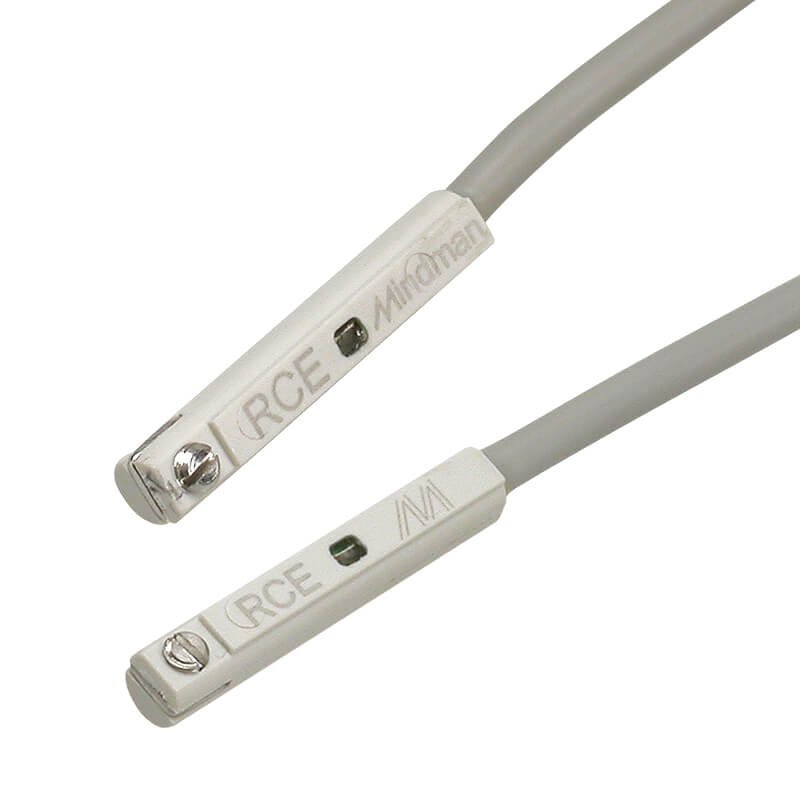

Mindman RCE1 Series: Sensor – RCE1-1M
SKU: RCE1-1M
$17.00
Sensor, Applicable Cylinder Model: 20-MCJQ/20-MCFA/20-MCGS/MCSS/20-MCSS/20-MCSH/20-MCHA/20-MCHB/20-MCHC, Model: RCE1(Solid-State), Wire Length / Connector: 1000mm
10000 in stock
Features
● Wiring Method 2-Wire, 3-Wire,
● Switch Logic Electronic Solid-State, N.O. Type
● Contact Type Reed, Solid-State, Solid-State NPN, Solid-State PNP
● Operating Voltage Range 5~120V DC/AC, 5~30V DC
● Max Switching Current 100mA, 50mA, 80mA (max.)
● Contact Capacity 10W, 1.5W, 2.2W (max.) (¡ù1)
● Internal Voltage Drop 3.5V, 0.5V@50Aa (max.)
Specification
| Item | Specification |
|---|---|
| Wiring method | 2 wire, 3 wire |
| Switching logic | Solid state output, normally open |
| Switch type | Reed switch, NPN current sinking, PNP current sourcing |
| Operating voltage | 5~120V DC/AC, 5~30V DC |
| Switching current | 100mA, 50mA, 80mA (max.) |
| Switching rating | 10W, 1.5W, 2.2W (max.) (※1) |
| Voltage drop | 3.5V, 0.5@50mA (max.) |
| Indicator | Red LED |
| Cable | φ2.8,2C,PU, φ2.6,2C,PVC, φ2.6,3C,PVC |
| Temperature | −10~70°C (No freezing) |
| Shock | 30G, 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | IP529 IP67 |
| Protection circuit | 1, 3,4 (※4) |
| Weight | 20g (2m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
