Mindman RCD Series: Sensor(Solid-State PNP) – RPDE-QD
$22.00

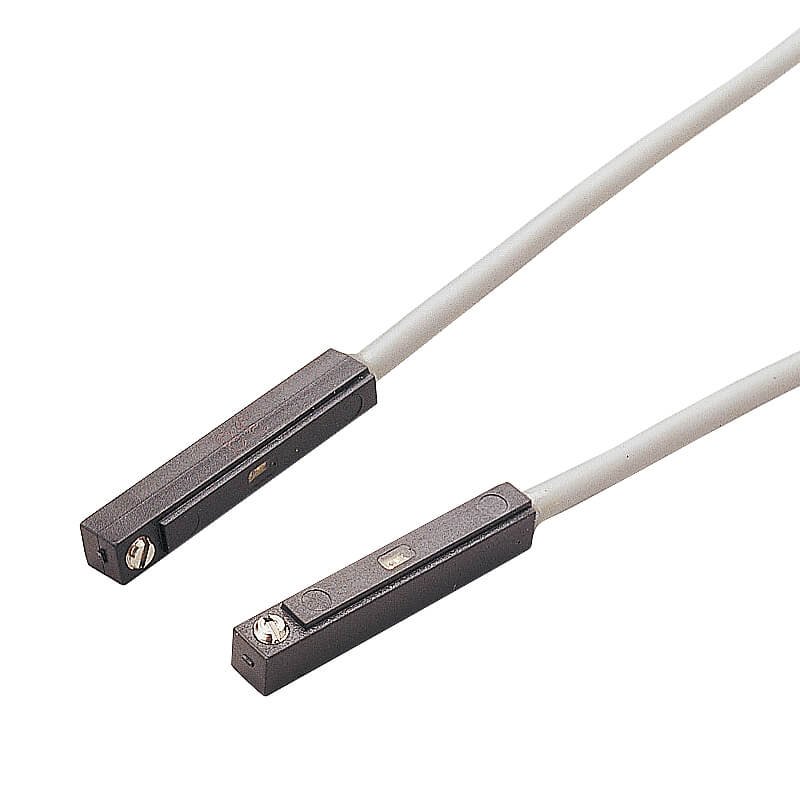

Sensor, Solid-State PNP, Wiring Method: 3-Wire, Wire Length: M8 3 Pin Termin al Type
10000 in stock
Features
● Wiring Method RCD, RDD: 2-Wire, RND, RNDE, RPD, RPDE: 3-Wire
● Switch Logic RCD: SPST N.O. Type, RDD, RND, RNDE, RPD, RPDE: Electronic Solid-State,N.O. Type
● Contact Type RCD: Reed, RDD: Solid-State, RND, RNDE: Solid-State NPN, RPD, RPDE: Solid-State PNP
● Operating Voltage Range RCD: 5~120V DC/AC, RDD, RND, RNDE, RPD, RPDE: 5~30V DC
● Max Switching Current RCD: 100mA max. RDD: 50mA max. RND, RNDE, RPD, RPDE: 200mA max.
● Contact Capacity RCD: 10W max. RDD: 1.5W max. RND, RNDE, RPD, RPDE: 6W max. (¡ù1)
● Current Consumption RND, RPD: 8 mA@24V DC max. RNDE, RPDE: 6 mA@24V DC max.
● Internal Voltage Drop RCD: 3.5V max. RDD: 3.7V max. RND, RPD: 1V@200mA max. RNDE, RPDE: 0.5V@200mA max.
| Item | Specification |
|---|---|
| Wiring method | 2 wire , 3 wire |
| Switching logic | SPST normally open, Solid state output, normally open |
| Switch type | Reed switch, Without contact, NPN current sinking, PNP current sourcing |
| Operating voltage | 5~120V DC/AC, 5~30V DC |
| Switching current | 100mA, 50mA, 200mA (max.) |
| Contact rating | 10W, 1.5W, 6W (max.) (※1) |
| Current consumption | 6mA@24V DC max. 8mA@24V DC max. |
| Voltage drop | 3.5V, 3.7V, 0.5V@200mA, 1V@200mA (max.) |
| Leakage current | 0.1mA, 0.01mA (max.) |
| Indicator | Red LED, Green LED |
| Cable | φ2.8, 2C, φ2.8, 3C |
| Temperature range | −10~+70°C (No freezing) |
| Shock | 30G, 50G (※2) |
| Vibration | 9G (※3) |
| Enclosure classification | ICE 60529 IP67 |
| Protection circuit | RCD: 1, RND, RPD: 2, 3, 4 RDD, RNDE, RPDE: 3,4 (※4) |
| Weight | 20 g (2m cable) |
| Remark | ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur. ※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
