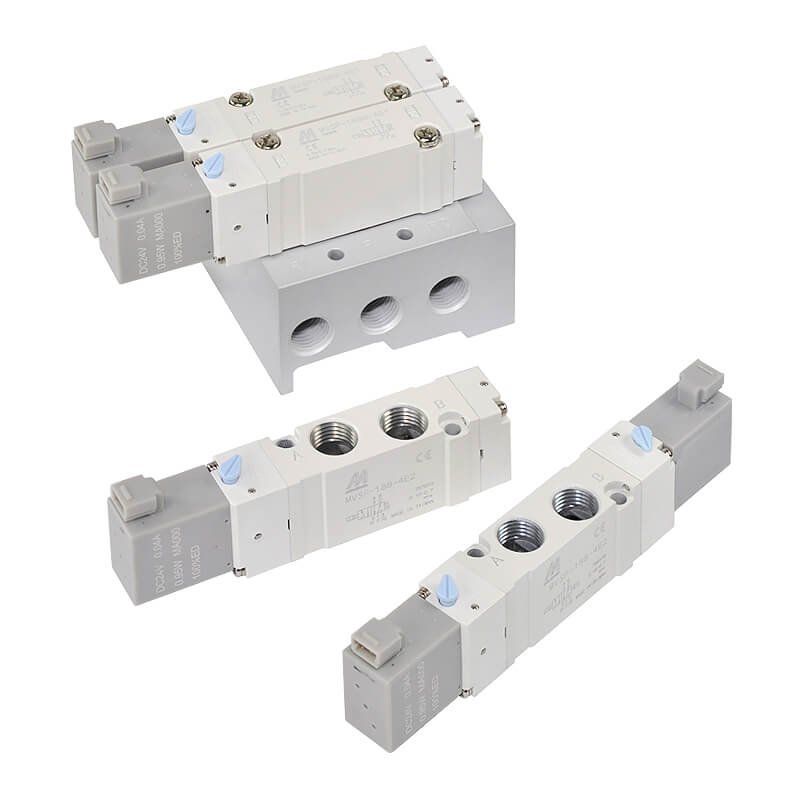

Mindman MVSP-188 Series: Solenoid Valve – MVSP-188-4E2-DC24-H

Name: Mindman MVSP-188 Series: Solenoid Valve - MVSP-188-4E2-DC24-H - Mindman
SKU: MVSP-188-4E2-DC24-H
Price: 64.00 USD
Availability: InStock

SKU: MVSP-188-4E2-DC24-H

$64.00

Solenoid Valve, Body Width: 188, Piping Type: Straight-Piping Type, Valve Type: 5-Port 2-Position Position Double Solenoid, Response Time: Standard, Voltage Type: DC24V, Wiring Type: Water Flat Socket With LED Type, Lead Wire Length: 500mm, Port Thread: Rc Thread, Operating Fluid: Air

10000 in stock

Click to view the Mindman MVSP-188 catalog.

Features
●Body width 18mm, 5-port 2-position, 5-port 3-position,
● Port Diameter Size 1/4, Straight-Piping Type / Manifold Type,
● Max Operating Pressure 0.7 MPa, Flow 599~1470 l/minII

Specification

Item	Specification
Body width	18 mm
Bore No.	8A
Port size	1/4
No. of port	5
No. of position	2, 3
Medium	Air
Operating pressure range	0.15~0.7 MPa, 0.2~0.7 MPa(5/3)
Proof pressure	1 MPa
Flow	599~1470 Nl /min
Effective orifice	15 mm2, 16.3/27/12.4 mm2 (5/3)
Response time	DC < 23 ms, AC < 35 ms , DC < 33 ms, AC < 45 ms (5/3)
Ambient temperature	−5~+50°C (No freezing)
Voltage	AC110V, AC220V (50/60)Hz, DC12/24V
Power consumption	AC=2.5VA , DC=0.95W
Available voltage range	±10%
Insulation class	F class
Weight	Valve: 96g, 132g, 142g Manifold: 5B: 50n+70g, 5M: 101n+139g (n: Stations)
Remark	* For quick response type, it cannot be energized for more than 30 minutes.

Order Example

MVSP-188 Order Example

Mindman MVSP-188 Series: Solenoid Valve – MVSP-188-4E2-DC24-H
