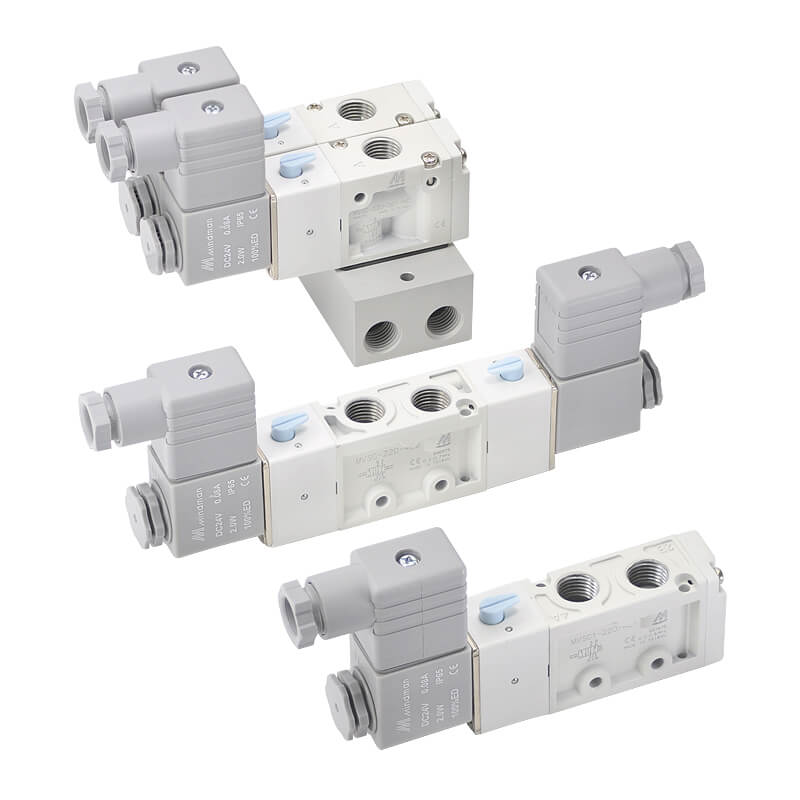

Mindman MVSC-220/series/solenoid valve -MVSC-220-3E1-NC-8A-AC110V-E

Product Features
Reed-type wire holder
The wire holder uses a reed-type design, which makes wiring quick and convenient, and improves the problem of wire damage.
Terminal Material
The terminal frame is nylon PA6, which has excellent chemical resistance and weather resistance.
Turn Knob
The water drop-shaped manual knob can be pressed and turned by hand, which is convenient for testing.
Using SurTec 650 film treatment
No oxidation occurs for up to 336 hours in a neutral salt spray environment.
¡ñAirtightness test
Airtightness is 100% in accordance with JIS airtightness test specifications, and all products are tested for airtightness. Shaft collar HNBR
U-packing shaft collar design
Good wear resistance, long service life, excellent sealing, wide temperature range -35~+150¡æ.
Coil
Low power consumption,
DC24V power is 2W, more environmentally friendly and energy-saving.
Insulation coil F grade/155¡æ grade enameled wire H grade/180¡æ
Plunger material
Use resulfurized stainless steel, containing 17% chromium and 1.5% silicon. Achieve the characteristics of low coercive magnetic field and high magnetic permeability, and respond smoothly and quickly.
