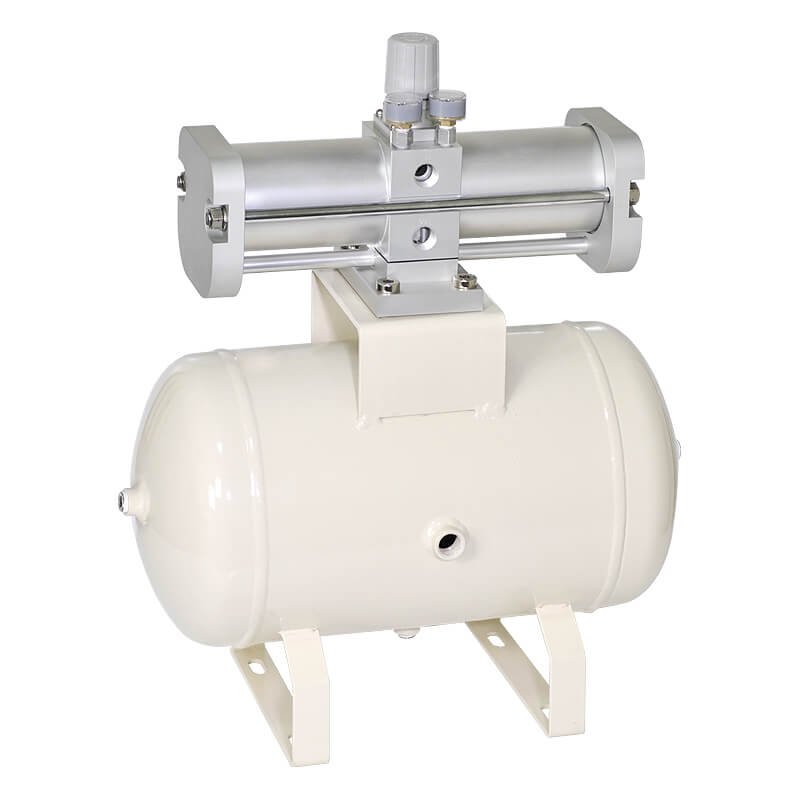

Mindman MVBAT Series: Booster(With Air Tank) – MVBAT10A
SKU: MVBAT10A
$411.00
Booster(With Air Tank), Booster MVBA-2100+Air Tank10L, Rc3/8, Air Tank Capacity: 10L
10000 in stock
Features
● Boosts line air pressure to up to twice the primary-side pressure.
● Fully air-actuated, no power required; low heat and simple to install.
Specification
| Item | Specification |
|---|---|
| Model | 1021, 2021, 2121, 2141, 22H43 |
| Medium | Compressed air |
| Operating pressure range | 0.2~1 MPa, 0.2~1.6 MPa |
| Supply pressure range | 0.1~1 MPa |
| Ambient temperature | +2~+50°C (No freezing) |
| Attachment (※3) | Pressure gauge: PG-25, PG-40W, PG-40W-20K |
| Option (※3) | A: precision filter regulator: A-BA-03, A-BA-04 S: silencer: MSLT-03, MSLT-04 V: drain valve & piping joint: V-BA-02 |
| Weight (booster regulator with air tank) | 12~34 kg |
| Booster regulator (※1) | |
| Applicable model | MVBA-2100, MVBA-4100, MVBA-4300 |
| IN, OUT, EXH port | Rc3/8, Rc1/2 |
| Air tank (※2) | |
| Applicable model | MVBAT10A, MVBAT20A, MVBAT21B, MVBAT21C, MVBAT22HC |
| OUT port size | Rc3/8, Rc1/2 |
| IN port size | No port thread provided |
| Safety valve sqare port | Rc3/8 |
| Drain valve port | Rc1/4 |
| Max. operating pressure | 2 MPa |
| Proof pressure | 1.6~3.3 MPa |
| Ambient & operating fluid temperature | 0~+75°C |
| Volume | 10, 20 L |
| Material | Carbon steel |
| Painting | Exterior: cool gray-white baked paint; interior: no anti-rust coating |
| Weight | 8~24.5 kg |
| Remark | ※1. When selecting option A (precision filter regulator), the booster will use Rc thread specification exclusively. Refer to "MVBA series spec." ※2. Not recommended for use solely as an air tank. Only Rc threading is available. For those opting for G or NPT threading, one male-to-female OUT port adapter (1 pc) is included as needed. ※3. Drain valves and precision filter regulator are assembled for shipment. Attachment and optional accessories are included with the shipment separately and are not pre-assembled. |
