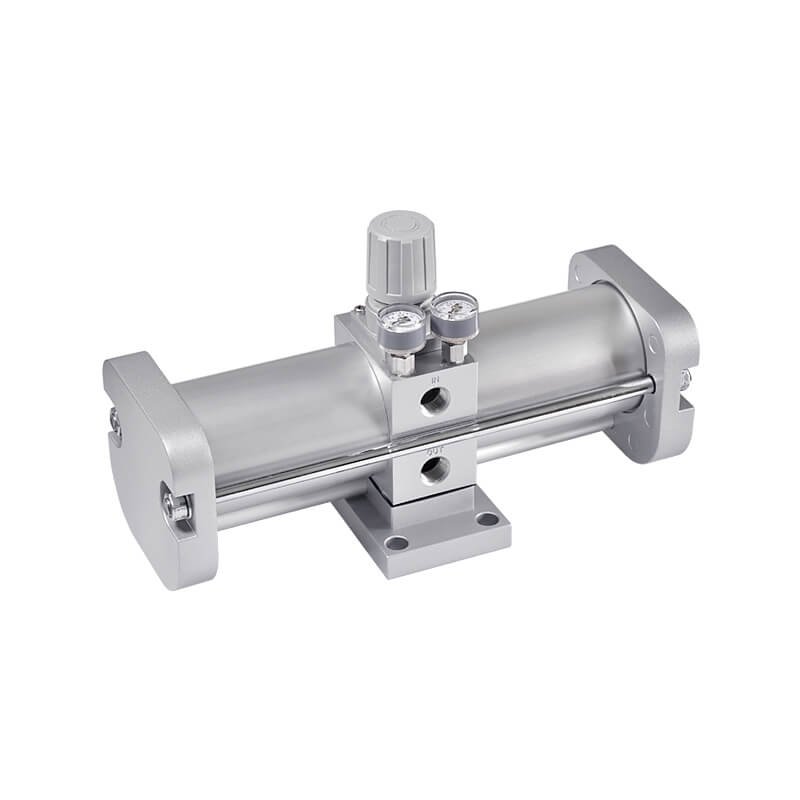

Mindman MVBA Series: Booster – MVBA-4100-NPT

Name: Mindman MVBA Series: Booster - MVBA-4100-NPT - Mindman
SKU: MVBA-4100-NPT
Price: 202.00 USD
Availability: InStock

SKU: MVBA-4100-NPT

$202.00

Booster, Spec: 1/2 Piping, Boost Pressure Ratio Max Large2¡Á, 0.2~1 MPa, Silencer: Without Silencer, Port Thread: NPT Thread

10000 in stock

Features
● Boosts part of the plant’s air pressure up to 2¡Á.
● Fully air-actuated, no power required; low heat and simple to install.

Item	Specification
Model	2100, 4100, 4300
Port size (IN, OUT, EXH)	3/8, 1/2, 1/2
Gauge port (IN, OUT)	1/16, 1/8, 1/8
Air tank port	1/4, 1/2, 1/2
Medium	Compressed air
Pressure increase rate	Maximum of twice
Operating pressure range (※1)	0.2~1 MPa, 0.2~1.6 MPa
Supply pressure range	0.1~1 MPa
Proof pressure	1.5 MPa, 2.4 MPa
Max. flow rate (※2)	1600 l/min
Ambient temperature	+2~+50°C (No freezing)
Installation	Horizontal
Lubrication	Not required
Attachment: pressure gauge	PG-25, PG-25, PG-40W-20K
Option: silencer (S)	MSLT-03, MSLT-04
Suitable for air tank (※3)	MVBA-2100: MVBAT10A, MVBAT20A, MVBAT21B MVBA-4100: MVBAT21C MVBA-4300: MVBAT22HC
Weight	3.9, 9.4, 9.5 kg
Remark	※1. Do not adjust the pressure beyond the maximum specified pressure range. ※2. Max. flow rate at IN=OUT=0.5 MPa. ※3. Please refer to the MVBAT series. ※4. Attachment and optional accessories are included with the shipment separately and are not pre-assembled.

MVBA Order Example
