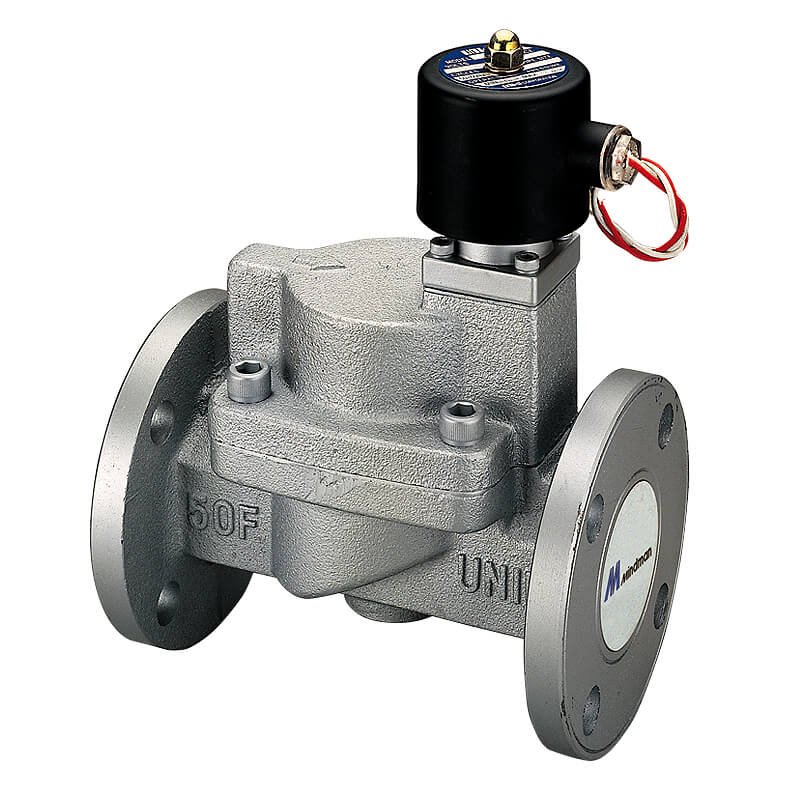

Mindman MUS-F Series: 2-Port 2-Position Pilot Piston Solenoid Valve(N.C. Type) – MUS-50F-D-T-AC110
$58.00
2-Port 2-Position Pilot Piston Solenoid Valve(N.C. Type), Valve Body Material: FC-20 Cast Iron, Connection Type: JIS 10K Flange, Port Diameter: 2″, Coil Type: DIN Termin al Coil(130¡ãC or less), Applicable Fluid: Water Steam, Voltage Type: AC110V(50/60)Hz
10000 in stock
Features
● A double-acting pilot-piston N.C. solenoid valve.
● If fluid temperature reaches 130¡ãC, Viton,
Silicone or EPDM seal heads are available.
●Port connection: JIS 10K flange; for other specs
(e.g. ANSI 150LB, PN 16, etc.) can be made to customer requirements.
● AC voltage tolerance: ¡À10%, DC voltage tolerance: ¡À1%.
| Item | Specification |
|---|---|
| Body | FC-20 |
| Coil | Special copper wire (H) |
| Piston | Brass |
| Tube | Stainless steel |
| Spring | Stainless steel |
| Core | Stainless steel |
| Plug | TFE |
| Bonnet / nut | PTFE |
