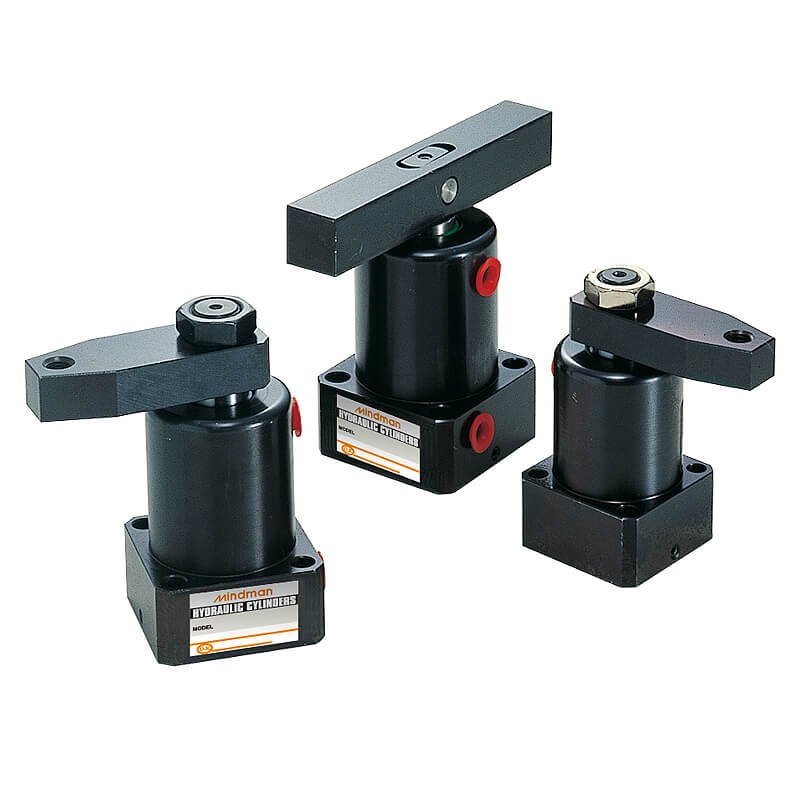

Mindman MTH Series: Hydraulic Swing-Clamp Cylinder – MTHD-25-CW-90
$288.00
Hydraulic Swing-Clamp Cylinder, Clamp Plate Configuration: Dual Clamp Plate Type, Vertical Down Stroke: Standard, Oil Circuit Plate Type: Standard(Side Piping), Rotation Direction: Clockwise, Rotation Angle: 90¡ã, Clamp Plate Type: Standard
10000 in stock
Features
● The hydraulic swing-down cylinder is mainly used where space is tight and no auxiliary clamp plate is available, to
easy clamping and releasing.
● This hydraulic swing-clamp is a pull-down cylinder, with five specs and two
clamp plates mountable at any 360¡ã position are available.
| Item | Specification |
|---|---|
| Tube I.D. (mm) | 25, 32, 40, 50, 63 |
| Acting type | Double acting |
| Medium | Filtered oil |
| Proof pressure | 10 MPa |
| Operating pressure range | 0.5~7 MPa |
| Material of cylinder barrel | Carbon steel |
| Standard angle of rotation | 90°±2° (angles of 0°, 45° and 60° are optional) |
| Rotating direction | Clockwise or counter clockwise |
