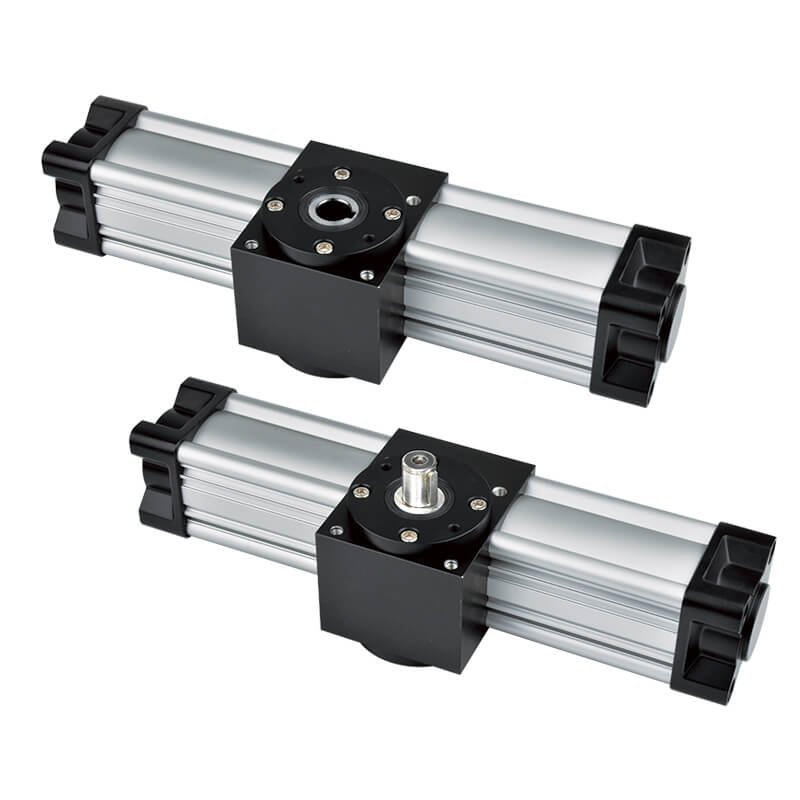

Mindman MRT*Series: Rotary Cylinder(Dual-Center Outer-Shaft Type) – MRTH-40-90-D
$629.00
Rotary Cylinder(Dual-Center Outer-Shaft Type), Cylinder Bore: 40mm, Rotation Angle: 90¡ã¡À5¡ã
10000 in stock
Features
● This rotary-cylinder series is attractive, high-performing, and high-torque.
● Always includes magnetic sensing and an angle-adjustment device.
| Item | Specification |
|---|---|
| Model | MRTF, MRTH, MRTH-D |
| Tube I.D. (mm) | 40, 63, 80 |
| Standard rotation | 90±5°, 180±5° |
| Rotating shaft dia. (mm) | 16, 24, 28 |
| Initial position of slot (mm) | See dimensional feature |
| Medium | Filtered air with or without lubrication |
| Operating pressure range | 0.13~0.7 MPa |
| Ambient temperature | −5°C~+60°C (No freezing) |
| Max. allowable axial thrust (kg) | 10, 12, 20 |
| Cushion angle | 74°, 75°, 80° |
| Max. allowable kinetic energy | 90° : 0.266J, 0.675J, 1.34J, 180° : 0.58J, 1.54J, 3.03J |
| Max. allowable radial trust (Fr) | 514.5N, 725.2N, 896.7N |
| Sensor switch | φ40, 63 : LN65, φ80 : LN03A |
