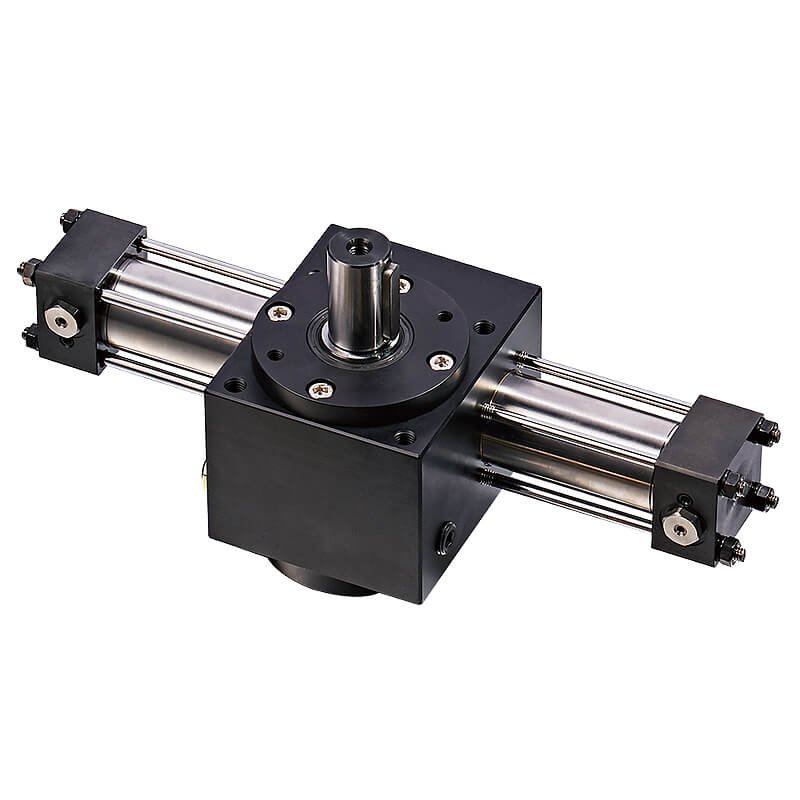

Mindman MRPH Series: Hydraulic Rotary Cylinder – MRPH-32-90
SKU: MRPH-32-90
$502.00
Hydraulic Rotary Cylinder, Cylinder Bore: 32mm, Rotation Angle: 90¡ã¡À5¡ã
10000 in stock
Features
● This rotary-cylinder series is attractive, high-performing, and high-torque.
● Always includes magnetic sensing and an angle-adjustment device.
Specification
| Item | Specification |
|---|---|
| Tube I.D. (mm) | 32, 40 |
| Standard rotation | 90±5°, 180±5° |
| Rotating shaft dia. (mm) | 24, 28 |
| Medium | Filtered hydraulic circulating oil |
| Max. operating pressure | 3.5 MPa |
| Ambient temperature | −10~+60°C (No freezing) |
| Max. allowable axial thrust | 12, 20 kg |
| Sensor switch | LN01P |
